rtl Architecture Reference
[Model of ALTRO chip]

Inheritance diagram for rtl:

[legend]

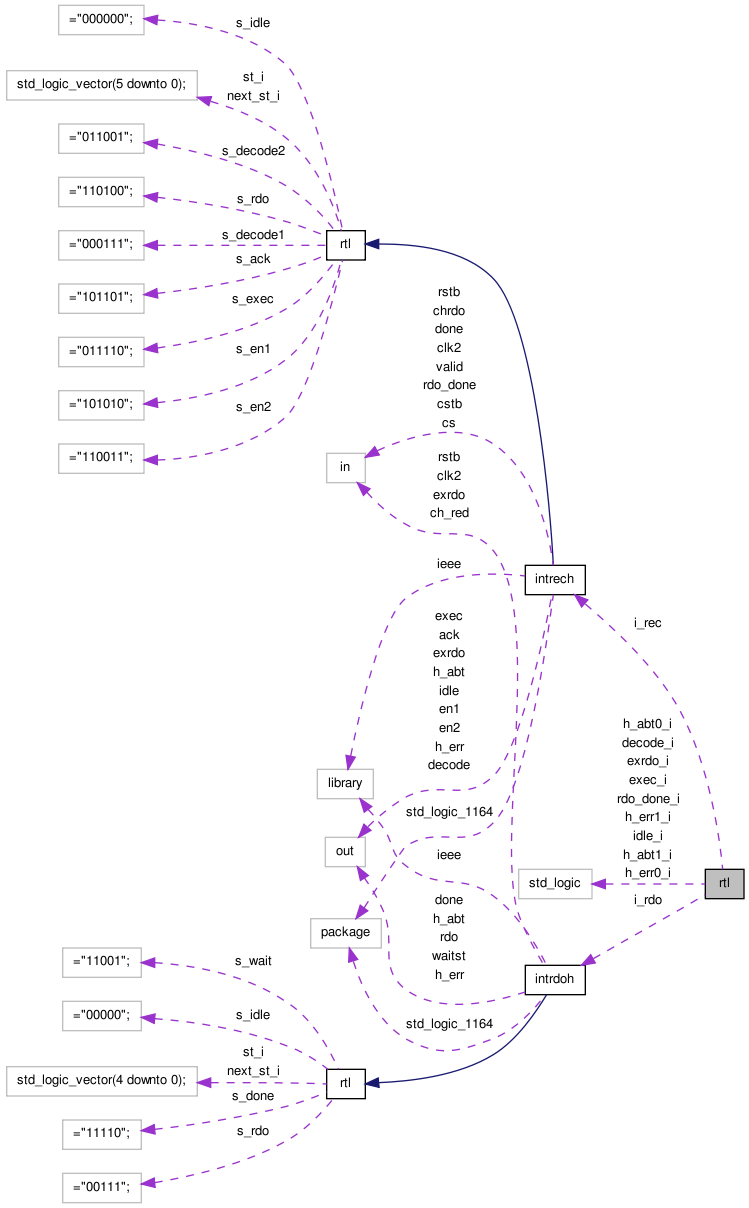

Collaboration diagram for rtl:

[legend]

List of all members.

Signals
decode_i	std_logic
	Decoded bus.
exec_i	std_logic
	Execute.
exrdo_i	std_logic
	Execute read-out.
h_err0_i	std_logic
	Hamming error 0.
h_abt0_i	std_logic
	Hamming abort 0.
h_err1_i	std_logic
	Hamming error 1.
h_abt1_i	std_logic
	Hamminb abort 1.
idle_i	std_logic
	In idle state.
rdo_done_i	std_logic
	Read-out done.
Component Instantiations
i_rdo	intrdoh <Entity intrdoh>
	Read-out interface.
i_rec	intrech <Entity intrech>

---

Detailed Description

Controller

---

Member Data Documentation

decode_i std_logic [Signal]

Decoded bus.

exec_i std_logic [Signal]

Execute.

exrdo_i std_logic [Signal]

Execute read-out.

h_abt0_i std_logic [Signal]

Hamming abort 0.

h_abt1_i std_logic [Signal]

Hamminb abort 1.

h_err0_i std_logic [Signal]

Hamming error 0.

h_err1_i std_logic [Signal]

Hamming error 1.

i_rdo intrdoh [Component Instantiation]

Read-out interface.

i_rec intrech [Component Instantiation]

idle_i std_logic [Signal]

In idle state.

rdo_done_i std_logic [Signal]

Read-out done.

---

The documentation for this class was generated from the following file:

• altro/intctrl.vhd
