AliFMD Class Reference

#include <FMD/AliFMD.h>

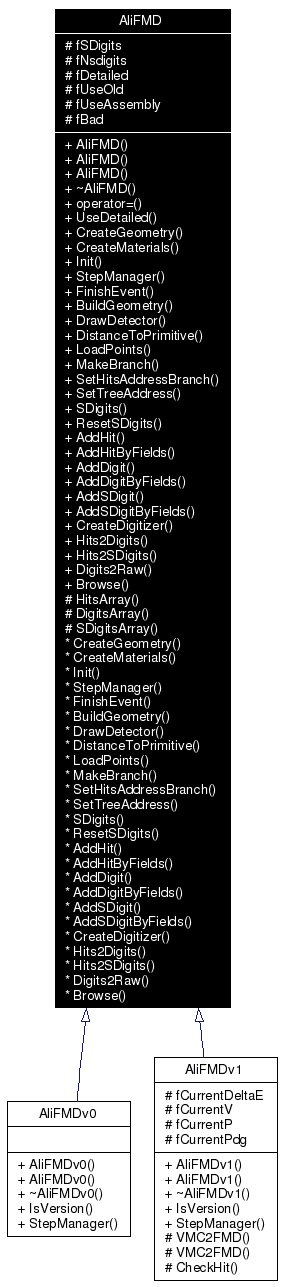

Inheritance diagram for AliFMD:

[legend]List of all members.

---

Detailed Description

Forward Multiplicity Detector based on Silicon wafers. This class is the driver for especially simulation.

The Forward Multiplicity Detector consists of 3 sub-detectors FMD1, FMD2, and FMD3, each of which has 1 or 2 rings of silicon sensors.

This is the base class for all FMD manager classes.

The actual code is done by various separate classes. Below is diagram showing the relationship between the various FMD classes that handles the simulation

          +----------+   +----------+
          | AliFMDv1 |   | AliFMDv0 |
          +----------+   +----------+
               |              |                    +-----------------+
          +----+--------------+                 +--| AliFMDDigitizer |
          |                                     |  +-----------------+
          |           +---------------------+   |
          |        +--| AliFMDBaseDigitizer |<--+
          V     1  |  +---------------------+   |
     +--------+<>--+                            |  +------------------+
     | AliFMD |                                 +--| AliFMDSDigitizer |
     +--------+<>--+                               +------------------+
	       1  |  +---------------------+
	          +--| AliFMDReconstructor |
	  	     +---------------------+


• AliFMD This defines the interface for the various parts of AliROOT that uses the FMD, like AliFMDSimulator, AliFMDDigitizer, AliFMDReconstructor, and so on.
• AliFMDv0 This is a concrete implementation of the AliFMD interface. It is the responsibility of this class to create the FMD geometry.
• AliFMDv1 This is a concrete implementation of the AliFMD interface. It is the responsibility of this class to create the FMD geometry, process hits in the FMD, and serve hits and digits to the various clients.
• AliFMDSimulator This is the base class for the FMD simulation tasks. The simulator tasks are responsible to implment the geoemtry, and process hits.
• AliFMDReconstructor This is a concrete implementation of the AliReconstructor that reconstructs pseudo-inclusive-multiplicities from digits (raw or from simulation)

Calibration and geometry parameters are managed by separate singleton managers. These are AliFMDGeometry and AliFMDParameters. Please refer to these classes for more information on these.

Definition at line 280 of file AliFMD.h.

Public Member Functions
	AliFMD ()
	AliFMD (const char *name, const char *title)
	AliFMD (const AliFMD &other)
virtual	~AliFMD ()
AliFMD &	operator= (const AliFMD &other)
void	UseDetailed (Bool_t use=kTRUE)
GEometry ANd Tracking (GEANT :-)
virtual void	CreateGeometry ()
virtual void	CreateMaterials ()
virtual void	Init ()
virtual void	StepManager ()=0
virtual void	FinishEvent ()
Graphics and event display
virtual void	BuildGeometry ()
virtual void	DrawDetector ()
virtual Int_t	DistanceToPrimitive (Int_t px, Int_t py)
virtual void	LoadPoints (Int_t track)
Hit and digit management
virtual void	MakeBranch (Option_t *opt=" ")
virtual void	SetHitsAddressBranch (TBranch *b)
virtual void	SetTreeAddress ()
virtual TClonesArray *	SDigits ()
virtual void	ResetSDigits ()
virtual void	AddHit (Int_t track, Int_t *vol, Float_t *hits)
virtual AliFMDHit *	AddHitByFields (Int_t track, UShort_t detector, Char_t ring, UShort_t sector, UShort_t strip, Float_t x=0, Float_t y=0, Float_t z=0, Float_t px=0, Float_t py=0, Float_t pz=0, Float_t edep=0, Int_t pdg=0, Float_t t=0, Float_t len=0, Bool_t stopped=kFALSE)
virtual void	AddDigit (Int_t *digits, Int_t *notused=0)
virtual void	AddDigitByFields (UShort_t detector=0, Char_t ring='\0', UShort_t sector=0, UShort_t strip=0, UShort_t count1=0, Short_t count2=-1, Short_t count3=-1)
virtual void	AddSDigit (Int_t *digits)
virtual void	AddSDigitByFields (UShort_t detector=0, Char_t ring='\0', UShort_t sector=0, UShort_t strip=0, Float_t edep=0, UShort_t count1=0, Short_t count2=-1, Short_t count3=-1)
Digitisation
virtual AliDigitizer *	CreateDigitizer (AliRunDigitizer *manager) const
virtual void	Hits2Digits ()
virtual void	Hits2SDigits ()
Raw data
virtual void	Digits2Raw ()
Utility
void	Browse (TBrowser *b)
Protected Types
enum	{   kSiId, kAirId, kPlasticId, kPcbId,   kSiChipId, kAlId, kCarbonId, kCopperId,   kKaptonId }
Protected Member Functions
TClonesArray *	HitsArray ()
TClonesArray *	DigitsArray ()
TClonesArray *	SDigitsArray ()
Protected Attributes
TClonesArray *	fSDigits
Int_t	fNsdigits
Bool_t	fDetailed
Bool_t	fUseOld
Bool_t	fUseAssembly
TObjArray *	fBad

---

Member Enumeration Documentation

anonymous enum [protected]

Enumerator: kSiId  kAirId  kPlasticId  kPcbId  kSiChipId  kAlId  kCarbonId  kCopperId  kKaptonId  Definition at line 525 of file AliFMD.h.

---

Constructor & Destructor Documentation

AliFMD::AliFMD (   )

Default constructor. Do not use.

AliFMD::AliFMD (  const char *  name, const char *  title )

Normal constructor Parameters: name  Name of object. title  Title of object.

AliFMD::AliFMD (  const AliFMD &  other  )

Copy constructor Parameters: other  Object to copy from

virtual AliFMD::~AliFMD (   )  [virtual]

Destructor

---

Member Function Documentation

virtual void AliFMD::AddDigit (  Int_t *  digits, Int_t *  notused = 0 )  [virtual]

Add a digit to the Digit tree Parameters: digits  digits[0] [UShort_t] Detector # digits[1] [Char_t] Ring ID digits[2] [UShort_t] Sector # digits[3] [UShort_t] Strip # digits[4] [UShort_t] ADC Count digits[5] [Short_t] ADC Count, -1 if not used digits[6] [Short_t] ADC Count, -1 if not used notused  Not used

virtual void AliFMD::AddDigitByFields (  UShort_t  detector = 0, Char_t  ring = '\0', UShort_t  sector = 0, UShort_t  strip = 0, UShort_t  count1 = 0, Short_t  count2 = -1, Short_t  count3 = -1 )  [virtual]

add a real digit Parameters: detector  Detector # (1, 2, or 3) ring  Ring ID ('I' or 'O') sector  Sector # (For inner/outer rings: 0-19/0-39) strip  Strip # (For inner/outer rings: 0-511/0-255) count1  ADC count (a 10-bit word) count2  ADC count (a 10-bit word), or -1 if not used count3  ADC count (a 10-bit word), or -1 if not used

virtual void AliFMD::AddHit (  Int_t  track, Int_t *  vol, Float_t *  hits )  [virtual]

Add a hit to the hits tree Parameters: track  Track # vol  Volume parameters, interpreted as ivol[0] [UShort_t ] Detector # ivol[1] [Char_t ] Ring ID ivol[2] [UShort_t ] Sector # ivol[3] [UShort_t ] Strip # hits  Hit information hits[0] [Float_t ] Track's X-coordinate at hit hits[1] [Float_t ] Track's Y-coordinate at hit hits[3] [Float_t ] Track's Z-coordinate at hit hits[4] [Float_t ] X-component of track's momentum hits[5] [Float_t ] Y-component of track's momentum hits[6] [Float_t ] Z-component of track's momentum hits[7] [Float_t ] Energy deposited by track hits[8] [Int_t ] Track's particle Id # hits[9] [Float_t ] Time when the track hit

virtual AliFMDHit* AliFMD::AddHitByFields (  Int_t  track, UShort_t  detector, Char_t  ring, UShort_t  sector, UShort_t  strip, Float_t  x = 0, Float_t  y = 0, Float_t  z = 0, Float_t  px = 0, Float_t  py = 0, Float_t  pz = 0, Float_t  edep = 0, Int_t  pdg = 0, Float_t  t = 0, Float_t  len = 0, Bool_t  stopped = kFALSE )  [virtual]

Add a hit to the list Parameters: track  Track # detector  Detector # (1, 2, or 3) ring  Ring ID ('I' or 'O') sector  Sector # (For inner/outer rings: 0-19/0-39) strip  Strip # (For inner/outer rings: 0-511/0-255) x  Track's X-coordinate at hit y  Track's Y-coordinate at hit z  Track's Z-coordinate at hit px  X-component of track's momentum py  Y-component of track's momentum pz  Z-component of track's momentum edep  Energy deposited by track pdg  Track's particle Id # t  Time when the track hit len  Track length through the material. stopped  Whether track was stopped or disappeared

virtual void AliFMD::AddSDigit (  Int_t *  digits  )  [virtual]

Add a digit to the Digit tree Parameters: digits  digits[0] [UShort_t] Detector # digits[1] [Char_t] Ring ID digits[2] [UShort_t] Sector # digits[3] [UShort_t] Strip # digits[4] [UShort_t] ADC Count digits[5] [Short_t] ADC Count, -1 if not used digits[6] [Short_t] ADC Count, -1 if not used

virtual void AliFMD::AddSDigitByFields (  UShort_t  detector = 0, Char_t  ring = '\0', UShort_t  sector = 0, UShort_t  strip = 0, Float_t  edep = 0, UShort_t  count1 = 0, Short_t  count2 = -1, Short_t  count3 = -1 )  [virtual]

add a summable digit - as coming from data Parameters: detector  Detector # (1, 2, or 3) ring  Ring ID ('I' or 'O') sector  Sector # (For inner/outer rings: 0-19/0-39) strip  Strip # (For inner/outer rings: 0-511/0-255) edep  Energy deposited count1  ADC count (a 10-bit word) count2  ADC count (a 10-bit word), or -1 if not used count3  ADC count (a 10-bit word), or -1 if not used

void AliFMD::Browse (  TBrowser *  b  )

Browse this object Parameters: b  Browser to show this object in

virtual void AliFMD::BuildGeometry (   )  [virtual]

Build simple ROOT TNode geometry for event display. With the new geometry modeller, TGeoManager, this seems rather redundant.

virtual AliDigitizer* AliFMD::CreateDigitizer (  AliRunDigitizer *  manager  )  const [virtual]

Create a digitizer object Parameters: manager  Digitization manager Returns: a newly allocated AliFMDDigitizer

virtual void AliFMD::CreateGeometry (   )  [virtual]

Define the geometry. This is done by asking the manager AliFMDGeometry to construct the geometry. This in turn calls AliFMDGeometryBuilder.

virtual void AliFMD::CreateMaterials (   )  [virtual]

Create the tracking mediums used by the FMD. This associates the tracking mediums defined with the FMD in the TVirtualMCApplication (AliMC). The defined mediums are FMD Si$ Silicon (active medium in sensors) FMD C$ Carbon fibre (support cone for FMD3 and vacuum pipe) FMD Al$ Aluminium (honeycomb support plates) FMD PCB$ Printed Circuit Board (FEE board with VA1_3) FMD Chip$ Electronics chips (currently not used) FMD Air$ Air (Air in the FMD) FMD Plastic$ Plastic (Support legs for the hybrid cards)

virtual void AliFMD::Digits2Raw (   )  [virtual]

Turn digits into raw data. This uses the class AliFMDRawWriter to do the job. Please refer to that class for more information.

TClonesArray* AliFMD::DigitsArray (   )  [protected]

Initialize digit array if not already done, and return pointert. Returns: Digit array

virtual Int_t AliFMD::DistanceToPrimitive (  Int_t  px, Int_t  py )  [virtual]

Calculate the distance from the mouse to the FMD on the screen Dummy routine

virtual void AliFMD::DrawDetector (   )  [virtual]

Draw a shaded view of the Forward multiplicity detector. This isn't really useful anymore.

virtual void AliFMD::FinishEvent (   )  [virtual]

Called at the end of each simulation event. If the debug level is high enough a list of bad hits is printed.

virtual void AliFMD::Hits2Digits (   )  [virtual]

Create AliFMDDigit's from AliFMDHit's. This is done by creating an AliFMDDigitizer object, and executing it.

virtual void AliFMD::Hits2SDigits (   )  [virtual]

Create AliFMDSDigit's from AliFMDHit's. This is done by creating an AliFMDSDigitizer object, and executing it.

TClonesArray* AliFMD::HitsArray (   )  [protected]

Initialize hit array if not already done, and return pointert. Returns: Hit array

virtual void AliFMD::Init (   )  [virtual]

Initialize this detector

virtual void AliFMD::LoadPoints (  Int_t  track  )  [virtual]

Store x, y, z of all hits in memory for display. Normally, the hits are drawn using TPolyMarker3D - however, that is not very useful for the FMD. Therefor, this member function is overloaded to make TMarker3D, via the class AliFMDPoints. AliFMDPoints is a local class. Parameters: track  the track number to load the hits for

virtual void AliFMD::MakeBranch (  Option_t *  opt = " "  )  [virtual]

AliFMD& AliFMD::operator= (  const AliFMD &  other  )

Assignment operator Parameters: other  Object to assign from Returns: Reference to this object

virtual void AliFMD::ResetSDigits (   )  [virtual]

Reset the array of summable digits

virtual TClonesArray* AliFMD::SDigits (   )  [inline, virtual]

Get the array of summable digits Returns: summable digits Definition at line 370 of file AliFMD.h.

TClonesArray* AliFMD::SDigitsArray (   )  [protected]

Initialize summable digit array if not already done, and return pointert. Returns: Summable digit array

virtual void AliFMD::SetHitsAddressBranch (  TBranch *  b  )  [virtual]

Set the TClonesArray to read hits into. Parameters: b  The branch to containn the hits

virtual void AliFMD::SetTreeAddress (   )  [virtual]

Set branch address for the Hits, Digits, and SDigits Tree.

virtual void AliFMD::StepManager (   )  [pure virtual]

This member function is called when ever a track deposites energy (or similar) in an FMD tracking medium. In this base class this member function is pure abstract. In concrete sub-classes, the member function may make hits or other stuff. Implemented in AliFMDv0, and AliFMDv1.

void AliFMD::UseDetailed (  Bool_t  use = kTRUE  )  [inline]

Wheter to make a detailed geometry Parameters: use  If true, make detailed geometry Definition at line 300 of file AliFMD.h.

---

Member Data Documentation

TObjArray* AliFMD::fBad [protected]

Definition at line 537 of file AliFMD.h.

Bool_t AliFMD::fDetailed [protected]

Definition at line 521 of file AliFMD.h.

Int_t AliFMD::fNsdigits [protected]

Definition at line 520 of file AliFMD.h.

TClonesArray* AliFMD::fSDigits [protected]

Definition at line 519 of file AliFMD.h.

Bool_t AliFMD::fUseAssembly [protected]

Definition at line 523 of file AliFMD.h.

Bool_t AliFMD::fUseOld [protected]

Definition at line 522 of file AliFMD.h.

---

The documentation for this class was generated from the following file:

• AliFMD.h

---
