AliFMDGeometry Class Reference
[Basic classes]

#include <AliFMDGeometry.h>

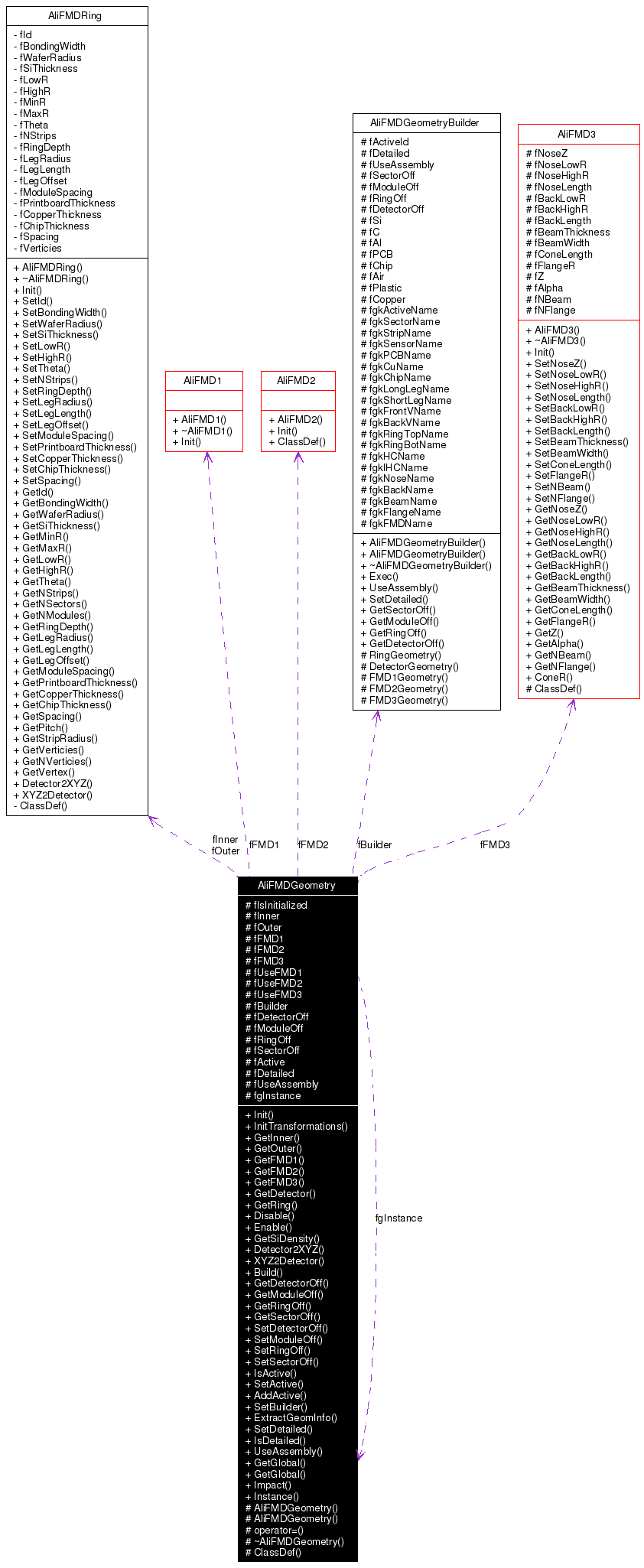

Collaboration diagram for AliFMDGeometry:

Detailed Description

Singleton object of FMD geometry descriptions and parameters. This class is a singleton that handles the geometry parameters of the FMD detectors.

The actual code is done by various separate classes. Below is diagram showing the relationship between the various FMD classes that handles the geometry

                                  +------------+
                               +- | AliFMDRing |
    			   2   |  +------------+
         +----------------+<>--+        |
         | AliFMDGeometry |             ^
         +----------------+<>--+        V 1..2
              		   3   | +----------------+
               		       +-| AliFMDDetector |
                		 +----------------+
                                        ^
                                        |
                          +-------------+-------------+
                          |             |             |
                     +---------+   +---------+   +---------+
                     | AliFMD1 |   | AliFMD2 |   | AliFMD3 |
                     +---------+   +---------+   +---------+

AliFMDRing This class contains all stuff needed to do with a ring. It's used by the AliFMDDetector objects to instantise inner and outer rings. The AliFMDRing objects are shared by the AliFMDDetector objects, and owned by the AliFMDv1 object.
AliFMD1, AliFMD2, and AliFMD3 These are specialisation of AliFMDDetector, that contains the particularities of each of the sub-detector system. It is envisioned that the classes should also define the support volumes and material for each of the detectors.

Definition at line 77 of file AliFMDGeometry.h.

Public Member Functions

virtual void Init ()

virtual void InitTransformations ()

AliFMDRing * GetInner () const

AliFMDRing * GetOuter () const

AliFMD1 * GetFMD1 () const

AliFMD2 * GetFMD2 () const

AliFMD3 * GetFMD3 () const

AliFMDDetector * GetDetector (Int_t i) const

AliFMDRing * GetRing (Char_t i) const

void Disable (Int_t i)

void Enable (Int_t i)

Double_t GetSiDensity () const

void Detector2XYZ (UShort_t detector, Char_t ring, UShort_t sector, UShort_t strip, Double_t &x, Double_t &y, Double_t &z) const

Bool_t XYZ2Detector (Double_t x, Double_t y, Double_t z, UShort_t &detector, Char_t &ring, UShort_t &sector, UShort_t &strip) const

void Build ()

Int_t GetDetectorOff () const

Int_t GetModuleOff () const

Int_t GetRingOff () const

Int_t GetSectorOff () const

void SetDetectorOff (Int_t off)

void SetModuleOff (Int_t off)

void SetRingOff (Int_t off)

void SetSectorOff (Int_t off)

Bool_t IsActive (Int_t vol) const

void SetActive (Int_t *active, Int_t n)

void AddActive (Int_t id)

void SetBuilder (AliFMDGeometryBuilder *b)

void ExtractGeomInfo ()

void SetDetailed (Bool_t det)

Bool_t IsDetailed () const

void UseAssembly (Bool_t ass)

virtual void GetGlobal (const AliRecPoint *p, TVector3 &pos, TMatrixF &mat) const

virtual void GetGlobal (const AliRecPoint *p, TVector3 &pos) const

virtual Bool_t Impact (const TParticle *particle) const

Static Public Member Functions

static AliFMDGeometry * Instance ()

Protected Member Functions

AliFMDGeometry ()

AliFMDGeometry (const AliFMDGeometry &other)

AliFMDGeometry & operator= (const AliFMDGeometry &other)

virtual ~AliFMDGeometry ()

ClassDef (AliFMDGeometry, 1)

Protected Attributes

Bool_t fIsInitialized

AliFMDRing * fInner

AliFMDRing * fOuter

AliFMD1 * fFMD1

AliFMD2 * fFMD2

AliFMD3 * fFMD3

Bool_t fUseFMD1

Bool_t fUseFMD2

Bool_t fUseFMD3

AliFMDGeometryBuilder * fBuilder

Int_t fDetectorOff

Int_t fModuleOff

Int_t fRingOff

Int_t fSectorOff

TArrayI fActive

Bool_t fDetailed

Bool_t fUseAssembly

Static Protected Attributes

static AliFMDGeometry * fgInstance

Constructor & Destructor Documentation

AliFMDGeometry::AliFMDGeometry ( ) [protected]

CTOR

AliFMDGeometry::AliFMDGeometry ( const AliFMDGeometry & other ) [protected]

Copy CTOR
Parameters:

other To copy from

virtual AliFMDGeometry::~AliFMDGeometry ( ) [inline, protected, virtual]

Definition at line 222 of file AliFMDGeometry.h.

Member Function Documentation

void AliFMDGeometry::AddActive ( Int_t id )

Parameters:

id Register volume id to be active

void AliFMDGeometry::Build ( )

Make the geometry. This delegates to AliFMDGeometryBuilder

AliFMDGeometry::ClassDef ( AliFMDGeometry ,

1

) [protected]

void AliFMDGeometry::Detector2XYZ ( UShort_t detector,

Char_t ring,

UShort_t sector,

UShort_t strip,

Double_t & x,

Double_t & y,

Double_t & z

) const

Translate detector coordinates (detector, ring, sector, strip) to spatial coordinates (x, y, z) in the master reference frame of ALICE. The member function uses the transformations previously obtained from the TGeoManager.
Parameters:

detector Detector number

ring Ring id

sector Sector number

strip Strip number

x On return, X coordinate

y On return, Y coordinate

z On return, Z coordinate

void AliFMDGeometry::Disable ( Int_t i )

Parameters:

i IF true, disable sub-detector i

void AliFMDGeometry::Enable ( Int_t i )

Parameters:

i IF true, enable sub-detector i

void AliFMDGeometry::ExtractGeomInfo ( )

Extract informaton from TGeoManager

AliFMDDetector* AliFMDGeometry::GetDetector ( Int_t i ) const

Get description of a sub-detector
Parameters:

i Sub-detector #

Returns:
Description of sub-detector, or 0

Int_t AliFMDGeometry::GetDetectorOff ( ) const [inline]

Returns:
Get detector offset in paths

Definition at line 148 of file AliFMDGeometry.h.

AliFMD1* AliFMDGeometry::GetFMD1 ( ) const [inline]

Returns:
Get FMD1 description

Definition at line 91 of file AliFMDGeometry.h.

AliFMD2* AliFMDGeometry::GetFMD2 ( ) const [inline]

Returns:
Get FMD2 description

Definition at line 93 of file AliFMDGeometry.h.

AliFMD3* AliFMDGeometry::GetFMD3 ( ) const [inline]

Returns:
Get FMD3 description

Definition at line 95 of file AliFMDGeometry.h.

virtual void AliFMDGeometry::GetGlobal ( const AliRecPoint * p,

TVector3 & pos

) const [virtual]

Get global coordinates cooresponding to a rec point.
Parameters:

p Reconstructed point.

pos On return, the position

virtual void AliFMDGeometry::GetGlobal ( const AliRecPoint * p,

TVector3 & pos,

TMatrixF & mat

) const [virtual]

Get global coordinates cooresponding to a rec point.
Parameters:

p Reconstructed point.

pos On return, the position

mat On return, the material at post

AliFMDRing* AliFMDGeometry::GetInner ( ) const [inline]

Returns:
Get inner description

Definition at line 87 of file AliFMDGeometry.h.

Int_t AliFMDGeometry::GetModuleOff ( ) const [inline]

Returns:
Get sensor offset in paths

Definition at line 150 of file AliFMDGeometry.h.

AliFMDRing* AliFMDGeometry::GetOuter ( ) const [inline]

Returns:
Get outer description

Definition at line 89 of file AliFMDGeometry.h.

AliFMDRing* AliFMDGeometry::GetRing ( Char_t i ) const

Get description of a ring
Parameters:

i Ring id

Returns:
Description of ring, or 0

Int_t AliFMDGeometry::GetRingOff ( ) const [inline]

Returns:
Get ring offset in paths

Definition at line 152 of file AliFMDGeometry.h.

Int_t AliFMDGeometry::GetSectorOff ( ) const [inline]

Returns:
Get ring sector in paths

Definition at line 154 of file AliFMDGeometry.h.

Double_t AliFMDGeometry::GetSiDensity ( ) const [inline]

Returns:
Density $\rho$ of silicon

Definition at line 109 of file AliFMDGeometry.h.

virtual Bool_t AliFMDGeometry::Impact ( const TParticle * particle ) const [virtual]

Check if particle will hit an active detector element. Note done yet.
Parameters:

particle Track

Returns:
true if particle will hit this detector

virtual void AliFMDGeometry::Init ( ) [virtual]

Initialize

virtual void AliFMDGeometry::InitTransformations ( ) [virtual]

Initialize transforms

static AliFMDGeometry* AliFMDGeometry::Instance ( ) [static]

Returns:
Singleton

Bool_t AliFMDGeometry::IsActive ( Int_t vol ) const

Check if volume vol is marked as active
Parameters:

vol Volume ID

Returns:
true if vol is declared active

Bool_t AliFMDGeometry::IsDetailed ( ) const [inline]

Returns:
true if geometry is detailed

Definition at line 182 of file AliFMDGeometry.h.

AliFMDGeometry& AliFMDGeometry::operator= ( const AliFMDGeometry & other ) [protected]

Assignment operator
Parameters:

other To assig from

Returns:
reference to this.

void AliFMDGeometry::SetActive ( Int_t * active,

Int_t n

)

Set active volumes
Parameters:

active Active volume id array

n elements of active

void AliFMDGeometry::SetBuilder ( AliFMDGeometryBuilder * b ) [inline]

Set an external geometry builder
Parameters:

b Geometry builder

Definition at line 175 of file AliFMDGeometry.h.

void AliFMDGeometry::SetDetailed ( Bool_t det ) [inline]

Whether we are to use a detailed geometry or not
Parameters:

det if true, make a detailed geometry.

Definition at line 180 of file AliFMDGeometry.h.

void AliFMDGeometry::SetDetectorOff ( Int_t off ) [inline]

Parameters:

off Detector off-set set in geometry path

Definition at line 156 of file AliFMDGeometry.h.

void AliFMDGeometry::SetModuleOff ( Int_t off ) [inline]

Parameters:

off Module off-set set in geometry path

Definition at line 158 of file AliFMDGeometry.h.

void AliFMDGeometry::SetRingOff ( Int_t off ) [inline]

Parameters:

off Ring off-set set in geometry path

Definition at line 160 of file AliFMDGeometry.h.

void AliFMDGeometry::SetSectorOff ( Int_t off ) [inline]

Parameters:

off Sectord off-set set in geometry path

Definition at line 162 of file AliFMDGeometry.h.

void AliFMDGeometry::UseAssembly ( Bool_t ass ) [inline]

Parameters:

ass Whether to use assemblies or not

Definition at line 184 of file AliFMDGeometry.h.

Bool_t AliFMDGeometry::XYZ2Detector ( Double_t x,

Double_t y,

Double_t z,

UShort_t & detector,

Char_t & ring,

UShort_t & sector,

UShort_t & strip

) const

Translate spatial coordinates (x,y,z) in the master reference frame of ALICE to the detector coordinates (detector, ring, sector, strip). Note, that if this method is to be used in reconstruction or the like, then the input z-coordinate should be corrected for the events interactions points z-coordinate, like
geom->XYZ2Detector(x,y,z-ipz,d,r,s,t);

Parameters:

x X coordinate

y Y coordinate

z Z coordinate

detector On return, Detector number

ring On return, Ring id

sector On return, Sector number

strip On return, Strip number

Returns:
false of (x, y, z) is not within this detector.

Member Data Documentation

TArrayI AliFMDGeometry::fActive [protected]

Definition at line 229 of file AliFMDGeometry.h.

AliFMDGeometryBuilder* AliFMDGeometry::fBuilder [protected]

Definition at line 224 of file AliFMDGeometry.h.

Bool_t AliFMDGeometry::fDetailed [protected]

Definition at line 230 of file AliFMDGeometry.h.

Int_t AliFMDGeometry::fDetectorOff [protected]

Definition at line 225 of file AliFMDGeometry.h.

AliFMD1* AliFMDGeometry::fFMD1 [protected]

Definition at line 206 of file AliFMDGeometry.h.

AliFMD2* AliFMDGeometry::fFMD2 [protected]

Definition at line 207 of file AliFMDGeometry.h.

AliFMD3* AliFMDGeometry::fFMD3 [protected]

Definition at line 208 of file AliFMDGeometry.h.

AliFMDGeometry* AliFMDGeometry::fgInstance [static, protected]

Definition at line 212 of file AliFMDGeometry.h.

AliFMDRing* AliFMDGeometry::fInner [protected]

Definition at line 204 of file AliFMDGeometry.h.

Bool_t AliFMDGeometry::fIsInitialized [protected]

Definition at line 203 of file AliFMDGeometry.h.

Int_t AliFMDGeometry::fModuleOff [protected]

Definition at line 226 of file AliFMDGeometry.h.

AliFMDRing* AliFMDGeometry::fOuter [protected]

Definition at line 205 of file AliFMDGeometry.h.

Int_t AliFMDGeometry::fRingOff [protected]

Definition at line 227 of file AliFMDGeometry.h.

Int_t AliFMDGeometry::fSectorOff [protected]

Definition at line 228 of file AliFMDGeometry.h.

Bool_t AliFMDGeometry::fUseAssembly [protected]

Definition at line 231 of file AliFMDGeometry.h.

Bool_t AliFMDGeometry::fUseFMD1 [protected]

Definition at line 209 of file AliFMDGeometry.h.

Bool_t AliFMDGeometry::fUseFMD2 [protected]

Definition at line 210 of file AliFMDGeometry.h.

Bool_t AliFMDGeometry::fUseFMD3 [protected]

Definition at line 211 of file AliFMDGeometry.h.

The documentation for this class was generated from the following file:

AliFMDGeometry.h

Generated on Fri Mar 24 17:11:22 2006 for ALICE FMD Off-line by

1.4.6


Public Member Functions
virtual void	Init ()
virtual void	InitTransformations ()
AliFMDRing *	GetInner () const
AliFMDRing *	GetOuter () const
AliFMD1 *	GetFMD1 () const
AliFMD2 *	GetFMD2 () const
AliFMD3 *	GetFMD3 () const
AliFMDDetector *	GetDetector (Int_t i) const
AliFMDRing *	GetRing (Char_t i) const
void	Disable (Int_t i)
void	Enable (Int_t i)
Double_t	GetSiDensity () const
void	Detector2XYZ (UShort_t detector, Char_t ring, UShort_t sector, UShort_t strip, Double_t &x, Double_t &y, Double_t &z) const
Bool_t	XYZ2Detector (Double_t x, Double_t y, Double_t z, UShort_t &detector, Char_t &ring, UShort_t &sector, UShort_t &strip) const
void	Build ()
Int_t	GetDetectorOff () const
Int_t	GetModuleOff () const
Int_t	GetRingOff () const
Int_t	GetSectorOff () const
void	SetDetectorOff (Int_t off)
void	SetModuleOff (Int_t off)
void	SetRingOff (Int_t off)
void	SetSectorOff (Int_t off)
Bool_t	IsActive (Int_t vol) const
void	SetActive (Int_t *active, Int_t n)
void	AddActive (Int_t id)
void	SetBuilder (AliFMDGeometryBuilder *b)
void	ExtractGeomInfo ()
void	SetDetailed (Bool_t det)
Bool_t	IsDetailed () const
void	UseAssembly (Bool_t ass)
virtual void	GetGlobal (const AliRecPoint *p, TVector3 &pos, TMatrixF &mat) const
virtual void	GetGlobal (const AliRecPoint *p, TVector3 &pos) const
virtual Bool_t	Impact (const TParticle *particle) const
Static Public Member Functions
static AliFMDGeometry *	Instance ()
Protected Member Functions
	AliFMDGeometry ()
	AliFMDGeometry (const AliFMDGeometry &other)
AliFMDGeometry &	operator= (const AliFMDGeometry &other)
virtual	~AliFMDGeometry ()
	ClassDef (AliFMDGeometry, 1)
Protected Attributes
Bool_t	fIsInitialized
AliFMDRing *	fInner
AliFMDRing *	fOuter
AliFMD1 *	fFMD1
AliFMD2 *	fFMD2
AliFMD3 *	fFMD3
Bool_t	fUseFMD1
Bool_t	fUseFMD2
Bool_t	fUseFMD3
AliFMDGeometryBuilder *	fBuilder
Int_t	fDetectorOff
Int_t	fModuleOff
Int_t	fRingOff
Int_t	fSectorOff
TArrayI	fActive
Bool_t	fDetailed
Bool_t	fUseAssembly
Static Protected Attributes
static AliFMDGeometry *	fgInstance

AliFMDGeometry Class Reference [Basic classes]

Detailed Description

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

AliFMDGeometry Class Reference
[Basic classes]
