AliFMD3 Class Reference
[Basic classes]

#include <FMD/AliFMD3.h>

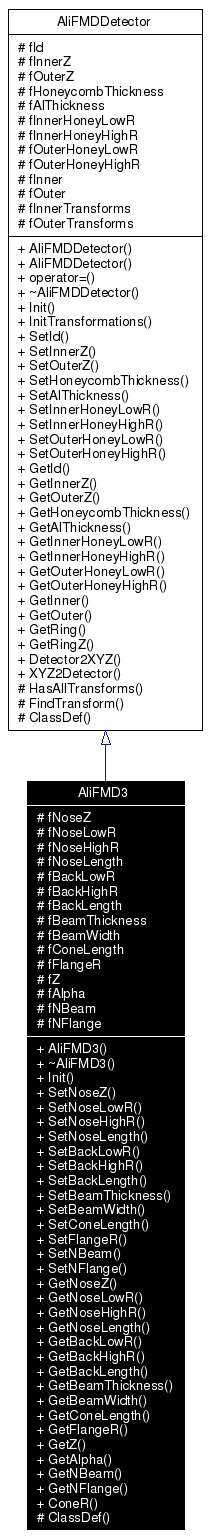

Inheritance diagram for AliFMD3:

[legend]Collaboration diagram for AliFMD3:

[legend]List of all members.

---

Detailed Description

Geometry parameters of the FMD3 detector. FMD3 has a fairly complicated support structure. The cone also supports the beam-pipe.

Definition at line 17 of file AliFMD3.h.

Public Member Functions
	AliFMD3 (AliFMDRing *inner, AliFMDRing *outer)
virtual	~AliFMD3 ()
virtual void	Init ()
void	SetNoseZ (Double_t z=-46)
void	SetNoseLowR (Double_t r=5.5)
void	SetNoseHighR (Double_t r=6.7)
void	SetNoseLength (Double_t l=2.8)
void	SetBackLowR (Double_t r=61./2)
void	SetBackHighR (Double_t r=66.8/2)
void	SetBackLength (Double_t l=1.4)
void	SetBeamThickness (Double_t t=.5)
void	SetBeamWidth (Double_t w=6)
void	SetConeLength (Double_t l=30.9)
void	SetFlangeR (Double_t r=49.25)
void	SetNBeam (Int_t n=8)
void	SetNFlange (Int_t n=4)
Double_t	GetNoseZ () const
Double_t	GetNoseLowR () const
Double_t	GetNoseHighR () const
Double_t	GetNoseLength () const
Double_t	GetBackLowR () const
Double_t	GetBackHighR () const
Double_t	GetBackLength () const
Double_t	GetBeamThickness () const
Double_t	GetBeamWidth () const
Double_t	GetConeLength () const
Double_t	GetFlangeR () const
Double_t	GetZ () const
Double_t	GetAlpha () const
Int_t	GetNBeam () const
Int_t	GetNFlange () const
Double_t	ConeR (Double_t z, Option_t *opt="O") const
Protected Member Functions
	ClassDef (AliFMD3, 1)
Protected Attributes
Double_t	fNoseZ
Double_t	fNoseLowR
Double_t	fNoseHighR
Double_t	fNoseLength
Double_t	fBackLowR
Double_t	fBackHighR
Double_t	fBackLength
Double_t	fBeamThickness
Double_t	fBeamWidth
Double_t	fConeLength
Double_t	fFlangeR
Double_t	fZ
Double_t	fAlpha
Int_t	fNBeam
Int_t	fNFlange

---

Constructor & Destructor Documentation

AliFMD3::AliFMD3 (  AliFMDRing *  inner, AliFMDRing *  outer )

Constructor Parameters: inner  Pointer to inner ring description outer  Pointer to outer ring description

virtual AliFMD3::~AliFMD3 (   )  [inline, virtual]

Destructor Definition at line 25 of file AliFMD3.h.

---

Member Function Documentation

AliFMD3::ClassDef (  AliFMD3  , 1  )  [protected]

Double_t AliFMD3::ConeR (  Double_t  z, Option_t *  opt = "O" )  const

Get the cone radii at z. Parameters: z  Point to evaulate at opt  If "O" get the outer radii, if "I" get the inner radii. Returns: the radius of the cone

Double_t AliFMD3::GetAlpha (   )  const [inline]

Returns: Slope of cone Definition at line 82 of file AliFMD3.h.

Double_t AliFMD3::GetBackHighR (   )  const [inline]

Returns: Outer radius of base of cone Definition at line 68 of file AliFMD3.h.

Double_t AliFMD3::GetBackLength (   )  const [inline]

Returns: Length of base of cone in Z Definition at line 70 of file AliFMD3.h.

Double_t AliFMD3::GetBackLowR (   )  const [inline]

Returns: Inner radius of base of cone Definition at line 66 of file AliFMD3.h.

Double_t AliFMD3::GetBeamThickness (   )  const [inline]

Returns: Thickness of support beams Definition at line 72 of file AliFMD3.h.

Double_t AliFMD3::GetBeamWidth (   )  const [inline]

Returns: Width of support beams Definition at line 74 of file AliFMD3.h.

Double_t AliFMD3::GetConeLength (   )  const [inline]

Returns: Length of the cone in Z Definition at line 76 of file AliFMD3.h.

Double_t AliFMD3::GetFlangeR (   )  const [inline]

Returns: Outer radius of flanges Definition at line 78 of file AliFMD3.h.

Int_t AliFMD3::GetNBeam (   )  const [inline]

Returns: Number of support beams Definition at line 84 of file AliFMD3.h.

Int_t AliFMD3::GetNFlange (   )  const [inline]

Returns: Number of support flanges Definition at line 86 of file AliFMD3.h.

Double_t AliFMD3::GetNoseHighR (   )  const [inline]

Returns: Nose outer radius Definition at line 62 of file AliFMD3.h.

Double_t AliFMD3::GetNoseLength (   )  const [inline]

Returns: Length of nose in Z Definition at line 64 of file AliFMD3.h.

Double_t AliFMD3::GetNoseLowR (   )  const [inline]

Returns: Nose inner radius Definition at line 60 of file AliFMD3.h.

Double_t AliFMD3::GetNoseZ (   )  const [inline]

Returns: Z position of front of nose Definition at line 58 of file AliFMD3.h.

Double_t AliFMD3::GetZ (   )  const [inline]

Returns: Midpoint of mother volume Definition at line 80 of file AliFMD3.h.

virtual void AliFMD3::Init (   )  [virtual]

Initialize the geometry Reimplemented from AliFMDDetector.

void AliFMD3::SetBackHighR (  Double_t  r = 66.8/2  )  [inline]

Parameters: r  Outer radius of base of cone Definition at line 41 of file AliFMD3.h.

void AliFMD3::SetBackLength (  Double_t  l = 1.4  )  [inline]

Parameters: l  Length of base of cone in Z Definition at line 43 of file AliFMD3.h.

void AliFMD3::SetBackLowR (  Double_t  r = 61./2  )  [inline]

Parameters: r  Inner radius of base of cone Definition at line 39 of file AliFMD3.h.

void AliFMD3::SetBeamThickness (  Double_t  t = .5  )  [inline]

Parameters: t  Thickness of support beams Definition at line 45 of file AliFMD3.h.

void AliFMD3::SetBeamWidth (  Double_t  w = 6  )  [inline]

Parameters: w  Width of support beams Definition at line 47 of file AliFMD3.h.

void AliFMD3::SetConeLength (  Double_t  l = 30.9  )  [inline]

Parameters: l  Length of the cone in Z Definition at line 49 of file AliFMD3.h.

void AliFMD3::SetFlangeR (  Double_t  r = 49.25  )  [inline]

Parameters: r  Outer radius of flanges Definition at line 51 of file AliFMD3.h.

void AliFMD3::SetNBeam (  Int_t  n = 8  )  [inline]

Parameters: n  Number of support beams Definition at line 53 of file AliFMD3.h.

void AliFMD3::SetNFlange (  Int_t  n = 4  )  [inline]

Parameters: n  Number of support flanges Definition at line 55 of file AliFMD3.h.

void AliFMD3::SetNoseHighR (  Double_t  r = 6.7  )  [inline]

Parameters: r  Nose outer radius Definition at line 35 of file AliFMD3.h.

void AliFMD3::SetNoseLength (  Double_t  l = 2.8  )  [inline]

Parameters: l  Length of nose in Z Definition at line 37 of file AliFMD3.h.

void AliFMD3::SetNoseLowR (  Double_t  r = 5.5  )  [inline]

Parameters: r  Nose inner radius Definition at line 33 of file AliFMD3.h.

void AliFMD3::SetNoseZ (  Double_t  z = -46  )  [inline]

Parameters: z  Z position of front of nose Definition at line 31 of file AliFMD3.h.

---

Member Data Documentation

Double_t AliFMD3::fAlpha [protected]

Definition at line 108 of file AliFMD3.h.

Double_t AliFMD3::fBackHighR [protected]

Definition at line 101 of file AliFMD3.h.

Double_t AliFMD3::fBackLength [protected]

Definition at line 102 of file AliFMD3.h.

Double_t AliFMD3::fBackLowR [protected]

Definition at line 100 of file AliFMD3.h.

Double_t AliFMD3::fBeamThickness [protected]

Definition at line 103 of file AliFMD3.h.

Double_t AliFMD3::fBeamWidth [protected]

Definition at line 104 of file AliFMD3.h.

Double_t AliFMD3::fConeLength [protected]

Definition at line 105 of file AliFMD3.h.

Double_t AliFMD3::fFlangeR [protected]

Definition at line 106 of file AliFMD3.h.

Int_t AliFMD3::fNBeam [protected]

Definition at line 109 of file AliFMD3.h.

Int_t AliFMD3::fNFlange [protected]

Definition at line 110 of file AliFMD3.h.

Double_t AliFMD3::fNoseHighR [protected]

Definition at line 98 of file AliFMD3.h.

Double_t AliFMD3::fNoseLength [protected]

Definition at line 99 of file AliFMD3.h.

Double_t AliFMD3::fNoseLowR [protected]

Definition at line 97 of file AliFMD3.h.

Double_t AliFMD3::fNoseZ [protected]

Definition at line 96 of file AliFMD3.h.

Double_t AliFMD3::fZ [protected]

Definition at line 107 of file AliFMD3.h.

---

The documentation for this class was generated from the following file:

• AliFMD3.h

---
