AliFMDParameters Class Reference
[Basic classes]

#include <AliFMDParameters.h>

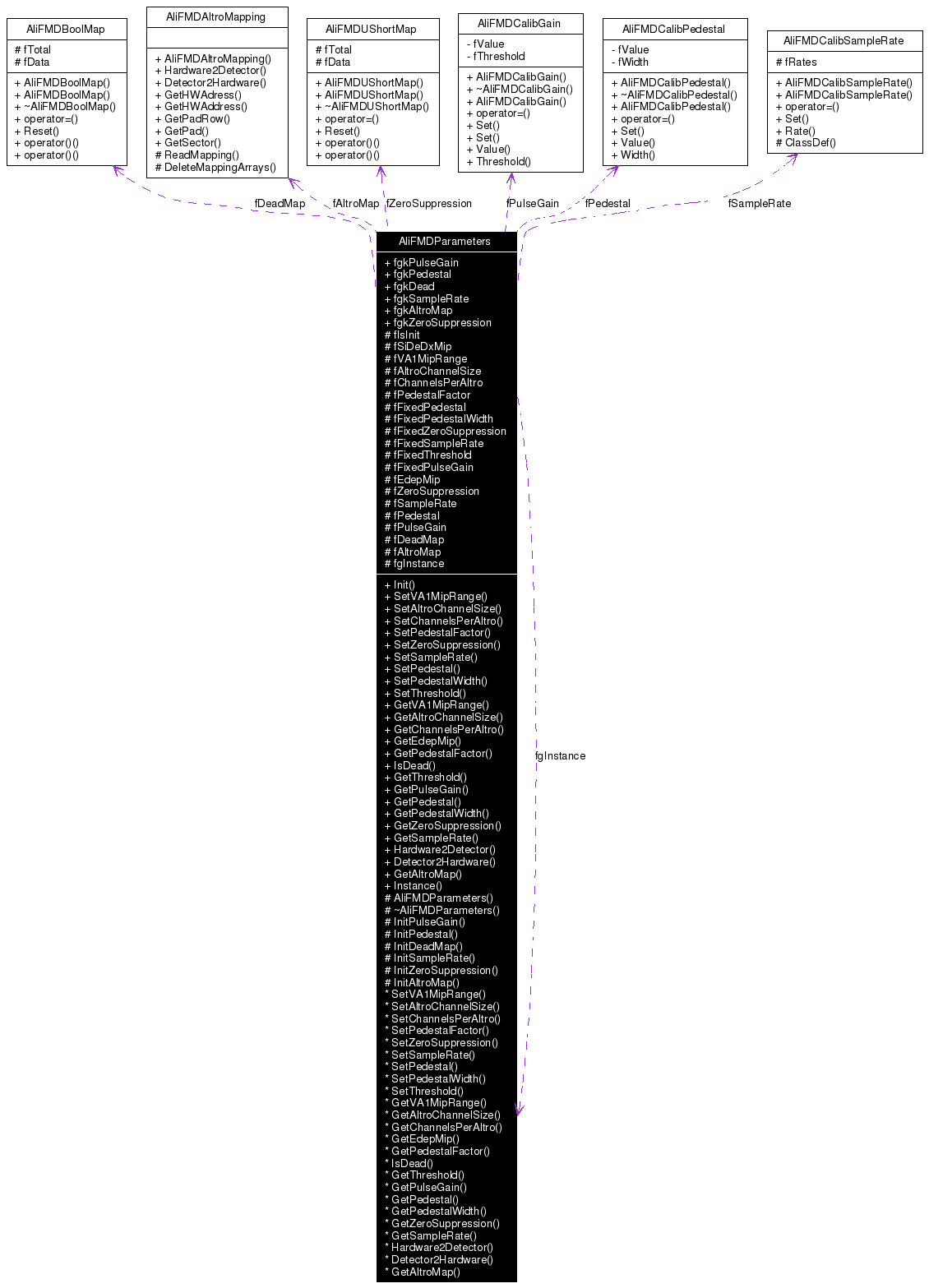

Collaboration diagram for AliFMDParameters:

[legend]List of all members.

---

Detailed Description

This class is a singleton that handles various parameters of the FMD detectors. This class reads from the Conditions DB to get the various parameters, which code can then request from here. In that way, all code uses the same data, and the interface is consistent.

Some of the parameter managed are

• fPedestal, fPedestalWidth Mean and width of the pedestal. The pedestal is simulated by a Guassian, but derived classes my override MakePedestal to simulate it differently (or pick it up from a database).
• fVA1MipRange The dymamic MIP range of the VA1_ALICE pre-amplifier chip
• fAltroChannelSize The largest number plus one that can be stored in one channel in one time step in the ALTRO ADC chip.
• fSampleRate How many times the ALTRO ADC chip samples the VA1_ALICE pre-amplifier signal. The VA1_ALICE chip is read-out at 10MHz, while it's possible to drive the ALTRO chip at 25MHz. That means, that the ALTRO chip can have time to sample each VA1_ALICE signal up to 2 times. Although it's not certain this feature will be used in the production, we'd like have the option, and so it should be reflected in the code.

Definition at line 63 of file AliFMDParameters.h.

Public Types
enum	{ kBaseDDL = 0x1000 }
Public Member Functions
void	Init ()
Set various `Fixed' parameters
void	SetVA1MipRange (UShort_t r=20)
void	SetAltroChannelSize (UShort_t s=1024)
void	SetChannelsPerAltro (UShort_t size=128)
void	SetPedestalFactor (Float_t f=3)
Set various variable parameter defaults
void	SetZeroSuppression (UShort_t s=0)
void	SetSampleRate (UShort_t r=1)
void	SetPedestal (Float_t p=10)
void	SetPedestalWidth (Float_t w=1)
void	SetThreshold (Float_t t=0)
Get `Fixed' various parameters
UShort_t	GetVA1MipRange () const
UShort_t	GetAltroChannelSize () const
UShort_t	GetChannelsPerAltro () const
Float_t	GetEdepMip () const
Float_t	GetPedestalFactor () const
Get variable parameters
Bool_t	IsDead (UShort_t detector, Char_t ring, UShort_t sector, UShort_t strip) const
Float_t	GetThreshold () const
Float_t	GetPulseGain (UShort_t detector, Char_t ring, UShort_t sector, UShort_t strip) const
Float_t	GetPedestal (UShort_t detector, Char_t ring, UShort_t sector, UShort_t strip) const
Float_t	GetPedestalWidth (UShort_t detector, Char_t ring, UShort_t sector, UShort_t strip) const
UShort_t	GetZeroSuppression (UShort_t detector, Char_t ring, UShort_t sector, UShort_t strip) const
UShort_t	GetSampleRate (UShort_t ddl) const
Bool_t	Hardware2Detector (UInt_t ddl, UInt_t addr, UShort_t &det, Char_t &ring, UShort_t &sec, UShort_t &str) const
Bool_t	Detector2Hardware (UShort_t det, Char_t ring, UShort_t sec, UShort_t str, UInt_t &ddl, UInt_t &addr) const
AliFMDAltroMapping *	GetAltroMap () const
Static Public Member Functions
static AliFMDParameters *	Instance ()
Static Public Attributes
static const char *	fgkPulseGain
static const char *	fgkPedestal
static const char *	fgkDead
static const char *	fgkSampleRate
static const char *	fgkAltroMap
static const char *	fgkZeroSuppression
Protected Member Functions
	AliFMDParameters ()
virtual	~AliFMDParameters ()
void	InitPulseGain ()
void	InitPedestal ()
void	InitDeadMap ()
void	InitSampleRate ()
void	InitZeroSuppression ()
void	InitAltroMap ()
Protected Attributes
Bool_t	fIsInit
const Float_t	fSiDeDxMip
UShort_t	fVA1MipRange
UShort_t	fAltroChannelSize
UShort_t	fChannelsPerAltro
Float_t	fPedestalFactor
Float_t	fFixedPedestal
Float_t	fFixedPedestalWidth
UShort_t	fFixedZeroSuppression
UShort_t	fFixedSampleRate
Float_t	fFixedThreshold
Float_t	fFixedPulseGain
Float_t	fEdepMip
AliFMDCalibZeroSuppression *	fZeroSuppression
AliFMDCalibSampleRate *	fSampleRate
AliFMDCalibPedestal *	fPedestal
AliFMDCalibGain *	fPulseGain
AliFMDCalibDeadMap *	fDeadMap
AliFMDAltroMapping *	fAltroMap
Static Protected Attributes
static AliFMDParameters *	fgInstance

---

Member Enumeration Documentation

anonymous enum

Enumerator: kBaseDDL  Definition at line 133 of file AliFMDParameters.h.

---

Constructor & Destructor Documentation

AliFMDParameters::AliFMDParameters (   )  [protected]

CTOR

virtual AliFMDParameters::~AliFMDParameters (   )  [inline, protected, virtual]

DTOR Definition at line 146 of file AliFMDParameters.h.

---

Member Function Documentation

Bool_t AliFMDParameters::Detector2Hardware (  UShort_t  det, Char_t  ring, UShort_t  sec, UShort_t  str, UInt_t &  ddl, UInt_t &  addr )  const

UShort_t AliFMDParameters::GetAltroChannelSize (   )  const [inline]

Definition at line 95 of file AliFMDParameters.h.

AliFMDAltroMapping* AliFMDParameters::GetAltroMap (   )  const

UShort_t AliFMDParameters::GetChannelsPerAltro (   )  const [inline]

Definition at line 96 of file AliFMDParameters.h.

Float_t AliFMDParameters::GetEdepMip (   )  const

Float_t AliFMDParameters::GetPedestal (  UShort_t  detector, Char_t  ring, UShort_t  sector, UShort_t  strip )  const

Float_t AliFMDParameters::GetPedestalFactor (   )  const [inline]

Definition at line 98 of file AliFMDParameters.h.

Float_t AliFMDParameters::GetPedestalWidth (  UShort_t  detector, Char_t  ring, UShort_t  sector, UShort_t  strip )  const

Float_t AliFMDParameters::GetPulseGain (  UShort_t  detector, Char_t  ring, UShort_t  sector, UShort_t  strip )  const

UShort_t AliFMDParameters::GetSampleRate (  UShort_t  ddl  )  const

Float_t AliFMDParameters::GetThreshold (   )  const

UShort_t AliFMDParameters::GetVA1MipRange (   )  const [inline]

Definition at line 94 of file AliFMDParameters.h.

UShort_t AliFMDParameters::GetZeroSuppression (  UShort_t  detector, Char_t  ring, UShort_t  sector, UShort_t  strip )  const

Bool_t AliFMDParameters::Hardware2Detector (  UInt_t  ddl, UInt_t  addr, UShort_t &  det, Char_t &  ring, UShort_t &  sec, UShort_t &  str )  const

void AliFMDParameters::Init (   )

Initialize the manager. This tries to read the parameters from CDB. If that fails, the class uses the hard-coded parameters.

void AliFMDParameters::InitAltroMap (   )  [protected]

Initialize hardware map. Try to get it from CDB

void AliFMDParameters::InitDeadMap (   )  [protected]

Initialize dead map. Try to get it from CDB

void AliFMDParameters::InitPedestal (   )  [protected]

Initialize pedestals. Try to get them from CDB

void AliFMDParameters::InitPulseGain (   )  [protected]

Initialize gains. Try to get them from CDB

void AliFMDParameters::InitSampleRate (   )  [protected]

Initialize sample rates. Try to get them from CDB

void AliFMDParameters::InitZeroSuppression (   )  [protected]

Initialize zero suppression thresholds. Try to get them from CDB

static AliFMDParameters* AliFMDParameters::Instance (   )  [static]

Singleton access Returns: single to

Bool_t AliFMDParameters::IsDead (  UShort_t  detector, Char_t  ring, UShort_t  sector, UShort_t  strip )  const

void AliFMDParameters::SetAltroChannelSize (  UShort_t  s = 1024  )  [inline]

Definition at line 78 of file AliFMDParameters.h.

void AliFMDParameters::SetChannelsPerAltro (  UShort_t  size = 128  )  [inline]

Definition at line 79 of file AliFMDParameters.h.

void AliFMDParameters::SetPedestal (  Float_t  p = 10  )  [inline]

Definition at line 87 of file AliFMDParameters.h.

void AliFMDParameters::SetPedestalFactor (  Float_t  f = 3  )  [inline]

Definition at line 80 of file AliFMDParameters.h.

void AliFMDParameters::SetPedestalWidth (  Float_t  w = 1  )  [inline]

Definition at line 88 of file AliFMDParameters.h.

void AliFMDParameters::SetSampleRate (  UShort_t  r = 1  )  [inline]

Definition at line 86 of file AliFMDParameters.h.

void AliFMDParameters::SetThreshold (  Float_t  t = 0  )  [inline]

Definition at line 89 of file AliFMDParameters.h.

void AliFMDParameters::SetVA1MipRange (  UShort_t  r = 20  )  [inline]

Definition at line 77 of file AliFMDParameters.h.

void AliFMDParameters::SetZeroSuppression (  UShort_t  s = 0  )  [inline]

Definition at line 85 of file AliFMDParameters.h.

---

Member Data Documentation

UShort_t AliFMDParameters::fAltroChannelSize [protected]

Definition at line 166 of file AliFMDParameters.h.

AliFMDAltroMapping* AliFMDParameters::fAltroMap [protected]

Definition at line 183 of file AliFMDParameters.h.

UShort_t AliFMDParameters::fChannelsPerAltro [protected]

Definition at line 167 of file AliFMDParameters.h.

AliFMDCalibDeadMap* AliFMDParameters::fDeadMap [protected]

Definition at line 182 of file AliFMDParameters.h.

Float_t AliFMDParameters::fEdepMip [mutable, protected]

Gain (cached). Definition at line 176 of file AliFMDParameters.h.

Float_t AliFMDParameters::fFixedPedestal [protected]

Definition at line 170 of file AliFMDParameters.h.

Float_t AliFMDParameters::fFixedPedestalWidth [protected]

Definition at line 171 of file AliFMDParameters.h.

Float_t AliFMDParameters::fFixedPulseGain [mutable, protected]

Definition at line 175 of file AliFMDParameters.h.

UShort_t AliFMDParameters::fFixedSampleRate [protected]

Definition at line 173 of file AliFMDParameters.h.

Float_t AliFMDParameters::fFixedThreshold [protected]

Definition at line 174 of file AliFMDParameters.h.

UShort_t AliFMDParameters::fFixedZeroSuppression [protected]

Definition at line 172 of file AliFMDParameters.h.

AliFMDParameters* AliFMDParameters::fgInstance [static, protected]

Singleton instance Definition at line 148 of file AliFMDParameters.h.

const char* AliFMDParameters::fgkAltroMap [static]

Definition at line 140 of file AliFMDParameters.h.

const char* AliFMDParameters::fgkDead [static]

Definition at line 138 of file AliFMDParameters.h.

const char* AliFMDParameters::fgkPedestal [static]

Definition at line 137 of file AliFMDParameters.h.

const char* AliFMDParameters::fgkPulseGain [static]

Definition at line 136 of file AliFMDParameters.h.

const char* AliFMDParameters::fgkSampleRate [static]

Definition at line 139 of file AliFMDParameters.h.

const char* AliFMDParameters::fgkZeroSuppression [static]

Definition at line 141 of file AliFMDParameters.h.

Bool_t AliFMDParameters::fIsInit [protected]

Definition at line 162 of file AliFMDParameters.h.

AliFMDCalibPedestal* AliFMDParameters::fPedestal [protected]

Definition at line 180 of file AliFMDParameters.h.

Float_t AliFMDParameters::fPedestalFactor [protected]

Definition at line 168 of file AliFMDParameters.h.

AliFMDCalibGain* AliFMDParameters::fPulseGain [protected]

Definition at line 181 of file AliFMDParameters.h.

AliFMDCalibSampleRate* AliFMDParameters::fSampleRate [protected]

Definition at line 179 of file AliFMDParameters.h.

const Float_t AliFMDParameters::fSiDeDxMip [protected]

Definition at line 164 of file AliFMDParameters.h.

UShort_t AliFMDParameters::fVA1MipRange [protected]

Definition at line 165 of file AliFMDParameters.h.

AliFMDCalibZeroSuppression* AliFMDParameters::fZeroSuppression [protected]

Cache of energy loss for a MIP. Definition at line 178 of file AliFMDParameters.h.

---

The documentation for this class was generated from the following file:

• AliFMDParameters.h

---
