Rcuxx::RcuERRST Class Reference
[RCU interface classes]

#include <rcuxx/Rcu.h>

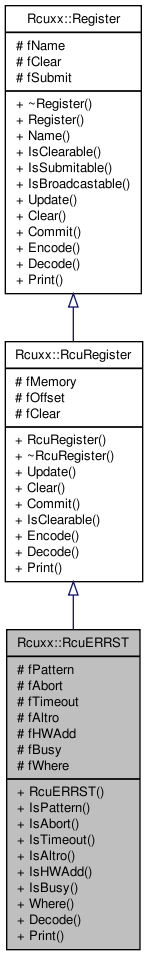

Inheritance diagram for Rcuxx::RcuERRST:

Collaboration diagram for Rcuxx::RcuERRST:

List of all members.

---

Detailed Description

Interface to the ERRor and STatus register.

This provide the interface that concrete implementations should implement.

Public Member Functions
	RcuERRST (RcuMemory &mem, size_t offset, RcuCommand *clear)
bool	IsPattern () const
bool	IsAbort () const
bool	IsTimeout () const
bool	IsAltro () const
bool	IsHWAdd () const
bool	IsBusy () const
unsigned int	Where () const
virtual void	Decode (unsigned int dat)
virtual void	Print () const
Protected Attributes
bool	fPattern
bool	fAbort
bool	fTimeout
bool	fAltro
bool	fHWAdd
bool	fBusy
unsigned int	fWhere

---

Constructor & Destructor Documentation

Rcuxx::RcuERRST::RcuERRST	(	RcuMemory &	mem,
		size_t	offset,
		RcuCommand *	clear
	)			[inline]

Constructor.

Parameters:

	mem	reference to memory
	offset	Offset in memory
	clear	Clear command

---

Member Function Documentation

bool Rcuxx::RcuERRST::IsPattern

(

)

const [inline]

Returns:

true if Pattern

References fPattern.

bool Rcuxx::RcuERRST::IsAbort

(

)

const [inline]

Returns:

true if Abort

References fAbort.

bool Rcuxx::RcuERRST::IsTimeout

(

)

const [inline]

Returns:

true if Timeout

References fTimeout.

bool Rcuxx::RcuERRST::IsAltro

(

)

const [inline]

Returns:

true if Altro

References fAltro.

bool Rcuxx::RcuERRST::IsHWAdd

(

)

const [inline]

Returns:

true if HWAdd

References fHWAdd.

bool Rcuxx::RcuERRST::IsBusy

(

)

const [inline]

Returns:

true if Busy

References fBusy.

unsigned int Rcuxx::RcuERRST::Where

(

)

const [inline]

Returns:

where error occured

References fWhere.

void Rcuxx::RcuERRST::Decode

(

unsigned int

dat

)

[inline, virtual]

Decode dat as the ERRor and STatus register.

Reimplemented from Rcuxx::RcuRegister.

References fAbort, fAltro, fBusy, fHWAdd, fPattern, fTimeout, and fWhere.

void Rcuxx::RcuERRST::Print

(

)

const [inline, virtual]

Print to standard output.

Reimplemented from Rcuxx::RcuRegister.

References fAbort, fAltro, fBusy, fHWAdd, fPattern, fTimeout, fWhere, and Rcuxx::RcuRegister::Print().

---

Member Data Documentation

bool Rcuxx::RcuERRST::fPattern [protected]

Error when comparing ALTRO channel PMEM to RCU PMEM.

Referenced by Decode(), IsPattern(), and Print().

bool Rcuxx::RcuERRST::fAbort [protected]

user did an abort

Referenced by Decode(), IsAbort(), and Print().

bool Rcuxx::RcuERRST::fTimeout [protected]

Command timed out.

Referenced by Decode(), IsTimeout(), and Print().

bool Rcuxx::RcuERRST::fAltro [protected]

Error from ALTRO bus (ALTROs or BCs).

Referenced by Decode(), IsAltro(), and Print().

bool Rcuxx::RcuERRST::fHWAdd [protected]

Error in address read in data read-out.

Referenced by Decode(), IsHWAdd(), and Print().

bool Rcuxx::RcuERRST::fBusy [protected]

ALTRO bus interface busy.

Referenced by Decode(), IsBusy(), and Print().

unsigned int Rcuxx::RcuERRST::fWhere [protected]

The address of this chip.

Referenced by Decode(), Print(), and Where().

---

The documentation for this class was generated from the following file:

• RcuERRST.h
