Rcuxx::RcuACL Struct Reference
[RCU interface classes]

#include <rcuxx/Rcu.h>

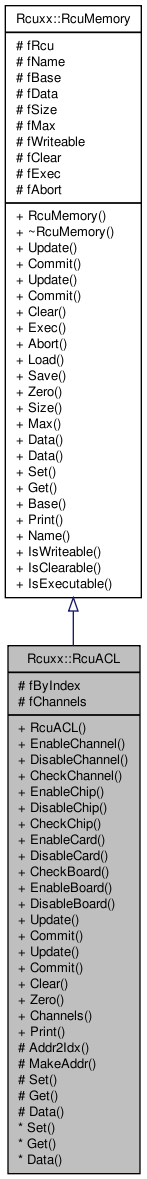

Inheritance diagram for Rcuxx::RcuACL:

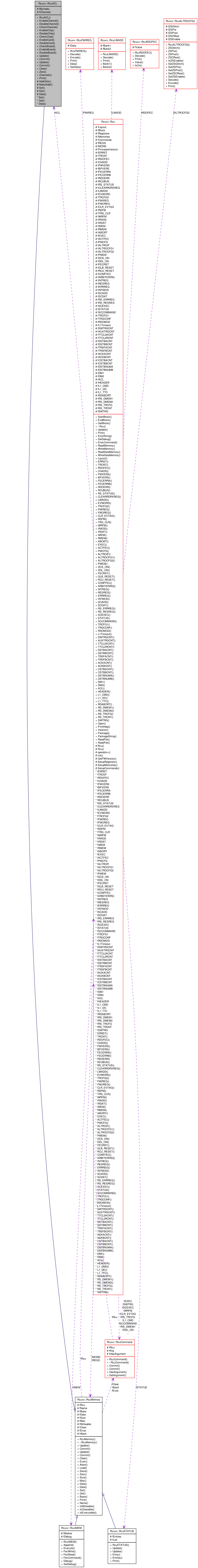

Collaboration diagram for Rcuxx::RcuACL:

List of all members.

---

Detailed Description

Interface to the RCU Active Channel List memory.

Public Member Functions
	RcuACL (Rcu &rcu, size_t base, size_t n, bool byIndex)
void	EnableChannel (unsigned int board, unsigned int chip, unsigned int channel)
void	DisableChannel (unsigned int board, unsigned int chip, unsigned int channel)
bool	CheckChannel (unsigned int board, unsigned int chip, unsigned int channel) const
void	EnableChip (unsigned int board, unsigned int chip, unsigned int mask=0xFFFF)
void	DisableChip (unsigned int board, unsigned int chip)
unsigned int	CheckChip (unsigned int board, unsigned int chip) const
void	EnableCard (unsigned int board, unsigned int *masks, unsigned int max)
void	DisableCard (unsigned int board)
void	CheckBoard (unsigned int board, unsigned int *mask, unsigned int max) const
void	EnableBoard (unsigned int board, unsigned int *mask, unsigned int max)
void	DisableBoard (unsigned int board)
virtual unsigned int	Update (size_t off, size_t n)
virtual unsigned int	Commit (size_t off, size_t n)
virtual unsigned int	Update ()
virtual unsigned int	Commit ()
virtual unsigned int	Clear ()
virtual void	Zero ()
void	Print () const
Protected Member Functions
Hide base class member functions
void	Set (size_t off, size_t n, unsigned int *d)
void	Get (size_t off, size_t n, unsigned int *d)
Cache_t &	Data ()
Protected Attributes
bool	fByIndex
ChannelList	fChannels

---

Constructor & Destructor Documentation

Rcuxx::RcuACL::RcuACL	(	Rcu &	rcu,
		size_t	base,
		size_t	n,
		bool	byIndex
	)			[inline]

Constructor.

Parameters:

	rcu	Reference to low-level interface
	base	Base address
	n	Number of words

---

Member Function Documentation

void Rcuxx::RcuACL::EnableChannel	(	unsigned int	board,
		unsigned int	chip,
		unsigned int	channel
	)			[inline]

Enable a channel.

References CheckChannel(), and fChannels.

Referenced by EnableChip(), and Update().

void Rcuxx::RcuACL::DisableChannel	(	unsigned int	board,
		unsigned int	chip,
		unsigned int	channel
	)			[inline]

Enable a channel.

References fChannels.

Referenced by DisableChip(), and EnableChip().

bool Rcuxx::RcuACL::CheckChannel	(	unsigned int	board,
		unsigned int	chip,
		unsigned int	channel
	)			const [inline]

Check a channel.

References fChannels.

Referenced by CheckChip(), and EnableChannel().

void Rcuxx::RcuACL::EnableChip	(	unsigned int	board,
		unsigned int	chip,
		unsigned int	mask = 0xFFFF
	)			[inline]

Enable a full chip.

References DisableChannel(), and EnableChannel().

Referenced by Rcuxx::RcuACTFEC::ACLSync(), and EnableBoard().

void Rcuxx::RcuACL::DisableChip	(	unsigned int	board,
		unsigned int	chip
	)			[inline]

Enable a full chip.

References DisableChannel().

Referenced by DisableBoard().

unsigned int Rcuxx::RcuACL::CheckChip	(	unsigned int	board,
		unsigned int	chip
	)			const [inline]

Get a mask of enabled channels in a chip.

References CheckChannel().

Referenced by CheckBoard(), and Rcuxx::RcuACTFEC::SyncToACL().

void Rcuxx::RcuACL::EnableCard	(	unsigned int	board,
		unsigned int *	masks,
		unsigned int	max
	)

Enable a full card.

void Rcuxx::RcuACL::DisableCard

(

unsigned int

board

)

Enable a full card.

void Rcuxx::RcuACL::CheckBoard	(	unsigned int	board,
		unsigned int *	mask,
		unsigned int	max
	)			const [inline]

Get a list of masks for a board.

References CheckChip().

void Rcuxx::RcuACL::EnableBoard	(	unsigned int	board,
		unsigned int *	mask,
		unsigned int	max
	)			[inline]

Enable a board.

References EnableChip().

void Rcuxx::RcuACL::DisableBoard

(

unsigned int

board

)

[inline]

Disable a board.

References DisableChip().

unsigned int Rcuxx::RcuACL::Update	(	size_t	off,
		size_t	n
	)			[inline, virtual]

Update the cache (restricted).

Parameters:

	off	Where to start reading
	n	How many words to read

Returns:

0 on success, error code otherwise

Reimplemented from Rcuxx::RcuMemory.

References EnableChannel(), fByIndex, fChannels, Rcuxx::RcuMemory::fData, Rcuxx::RcuMemory::fSize, and Rcuxx::RcuMemory::Update().

unsigned int Rcuxx::RcuACL::Commit	(	size_t	off,
		size_t	n
	)			[inline, virtual]

Write to the hardware (restricted).

Parameters:

	off	Where to start writing
	n	How many words to write

Returns:

0 on success, error code otherwise

Reimplemented from Rcuxx::RcuMemory.

References Rcuxx::RcuMemory::Commit(), fByIndex, fChannels, Rcuxx::RcuMemory::fData, and Rcuxx::RcuMemory::fSize.

virtual unsigned int Rcuxx::RcuACL::Update

(

)

[inline, virtual]

Update the cache.

Returns:

0 on success, error code otherwise

Reimplemented from Rcuxx::RcuMemory.

References Rcuxx::RcuMemory::fSize.

virtual unsigned int Rcuxx::RcuACL::Commit

(

)

[inline, virtual]

Commit to the RCU.

Returns:

0 on success, error code otherwise

Reimplemented from Rcuxx::RcuMemory.

References Rcuxx::RcuMemory::fSize.

virtual unsigned int Rcuxx::RcuACL::Clear

(

)

[inline, virtual]

Clear memory.

Reimplemented from Rcuxx::RcuMemory.

References fChannels.

Referenced by Zero().

virtual void Rcuxx::RcuACL::Zero

(

)

[inline, virtual]

Zero the memory.

Reimplemented from Rcuxx::RcuMemory.

References Clear(), and Rcuxx::RcuMemory::Zero().

void Rcuxx::RcuACL::Print

(

)

const [inline, virtual]

Print cache to standard output.

Reimplemented from Rcuxx::RcuMemory.

References fChannels.

void Rcuxx::RcuACL::Set	(	size_t	off,
		size_t	n,
		unsigned int *	d
	)			[inline, protected]

Set the cache.

Parameters:

	off	Starting offset
	n	How many words (size of d)
	d	The values Set

Reimplemented from Rcuxx::RcuMemory.

References Rcuxx::RcuMemory::Set().

void Rcuxx::RcuACL::Get	(	size_t	off,
		size_t	n,
		unsigned int *	d
	)			[inline, protected]

Get the cache.

Parameters:

	off	Starting offset
	n	How many words (size of d)
	d	On return, the values

Reimplemented from Rcuxx::RcuMemory.

References Rcuxx::RcuMemory::Get().

Cache_t& Rcuxx::RcuACL::Data

(

)

[inline, protected]

Returns:

Get the data

Reimplemented from Rcuxx::RcuMemory.

References Rcuxx::RcuMemory::fData.

---

Member Data Documentation

bool Rcuxx::RcuACL::fByIndex [protected]

Whether cards/channels are index by location, or by entries.

Referenced by Commit(), and Update().

ChannelList Rcuxx::RcuACL::fChannels [protected]

Cache.

Referenced by CheckChannel(), Clear(), Commit(), DisableChannel(), EnableChannel(), Print(), and Update().

---

The documentation for this struct was generated from the following file:

• RcuACL.h
