Rcuxx::AltroDPCFG Struct Reference
[ALTRO interface classes]

#include <rcuxx/Altro.h>

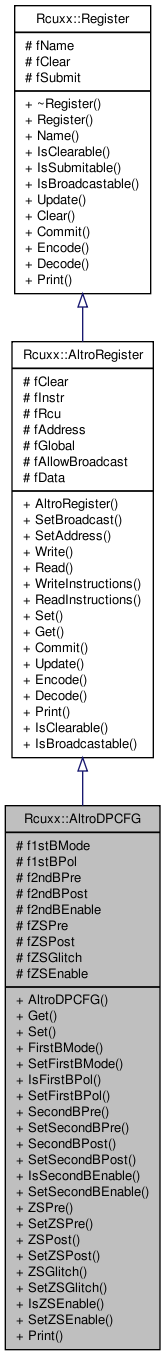

Inheritance diagram for Rcuxx::AltroDPCFG:

Collaboration diagram for Rcuxx::AltroDPCFG:

List of all members.

---

Detailed Description

Interface to ALTRO register DPCFG - data path configuration.

Register containing configuration parameters for the BSU, MAU and ZSU. The table below shows in detail the function of each bit.

Public Member Functions
	AltroDPCFG (Rcu &rcu)
void	Get ()
void	Set ()
unsigned int	FirstBMode () const
void	SetFirstBMode (unsigned int val)
bool	IsFirstBPol () const
void	SetFirstBPol (bool on=true)
unsigned int	SecondBPre () const
void	SetSecondBPre (unsigned int val)
unsigned int	SecondBPost () const
void	SetSecondBPost (unsigned int val)
bool	IsSecondBEnable () const
void	SetSecondBEnable (bool on=true)
unsigned int	ZSPre () const
void	SetZSPre (unsigned int val)
unsigned int	ZSPost () const
void	SetZSPost (unsigned int val)
unsigned int	ZSGlitch () const
void	SetZSGlitch (unsigned int val)
bool	IsZSEnable () const
void	SetZSEnable (bool on=true)
virtual void	Print () const
Protected Attributes
unsigned int	f1stBMode
bool	f1stBPol
unsigned int	f2ndBPre
unsigned int	f2ndBPost
bool	f2ndBEnable
unsigned int	fZSPre
unsigned int	fZSPost
unsigned int	fZSGlitch
bool	fZSEnable

---

Constructor & Destructor Documentation

Rcuxx::AltroDPCFG::AltroDPCFG

(

Rcu &

rcu

)

[inline]

Constructor.

Parameters:

	imem	Intstruction memory
	rmem	Result memory

---

Member Function Documentation

void Rcuxx::AltroDPCFG::Get

(

)

[inline, virtual]

Get the values from internal cache after update.

Reimplemented from Rcuxx::AltroRegister.

References f1stBMode, f1stBPol, f2ndBEnable, f2ndBPost, f2ndBPre, Rcuxx::AltroRegister::fData, fZSEnable, fZSGlitch, fZSPost, and fZSPre.

void Rcuxx::AltroDPCFG::Set

(

)

[inline, virtual]

Set the internal cache before commit.

Reimplemented from Rcuxx::AltroRegister.

References f1stBMode, f1stBPol, f2ndBEnable, f2ndBPost, f2ndBPre, Rcuxx::AltroRegister::fData, fZSEnable, fZSGlitch, fZSPost, and fZSPre.

unsigned int Rcuxx::AltroDPCFG::FirstBMode

(

)

const [inline]

1st baseline mode

References f1stBMode.

void Rcuxx::AltroDPCFG::SetFirstBMode

(

unsigned int

val

)

[inline]

1st baseline mode Valid modes are

bits	hex	Meaning
0000	0x0	din-fpd
0001	0x1	din-f(t)
0010	0x2	din-f(din)
0011	0x3	din-f(din-vpd)
0100	0x4	din-vpd-fpd
0101	0x5	din-vpd-f(t)
0110	0x6	din-vpd-f(din)
0111	0x7	din-vpd-f(din-vpd)
1000	0x8	f(din)-fpd
1001	0x9	f(din-vpd)-fpd
1010	0xA	f(t)-fpd
1011	0xB	f(t)-f(t)
1100	0xC	f(din)-f(din)
1101	0xD	f(din-vpd)-f(din-vpd)
1110	0xE	din-fpd
1111	0xF	din-fpd

The abbrivations have the following meaning:

• din stands for the data stream coming from the ADC.
• fpd stands for the fixed pedestal, a constant value stored in register VFPED that is to be subtracted from the ADC data stream (see AltroVFPED).
• vpd stands for the self-calibrated pedestal value, that is, the average DC level that the ADC sees outside the acquisition window (i.e. when there is no signal from the gas chamber) (see AltroVFPED)
• Look-up in pedestal memory with index . That is, for example
• f(t) stands for the data of the Pedestal Memory, played back as a function of time for the duration of the acquisition after a L1 trigger is received. (Pattern Generator Mode).
• f(din) stands for the data of the Pedestal Memory, played back a function of the ADC data at any time. (Look-up Table Mode).

References f1stBMode.

bool Rcuxx::AltroDPCFG::IsFirstBPol

(

)

const [inline]

1's compliment

References f1stBPol.

void Rcuxx::AltroDPCFG::SetFirstBPol

(

bool

on = true

)

[inline]

Parameters:

on

Set 1's compliment to on or off

References f1stBPol.

unsigned int Rcuxx::AltroDPCFG::SecondBPre

(

)

const [inline]

2nd baseline pre excl.

References f2ndBPre.

void Rcuxx::AltroDPCFG::SetSecondBPre

(

unsigned int

val

)

[inline]

2nd baseline pre excl.

References f2ndBPre.

unsigned int Rcuxx::AltroDPCFG::SecondBPost

(

)

const [inline]

2nd baseline post exclude

References f2ndBPost.

void Rcuxx::AltroDPCFG::SetSecondBPost

(

unsigned int

val

)

[inline]

2nd baseline post exclude

References f2ndBPost.

bool Rcuxx::AltroDPCFG::IsSecondBEnable

(

)

const [inline]

Is 2nd baseline correction enabled.

References f2ndBEnable.

void Rcuxx::AltroDPCFG::SetSecondBEnable

(

bool

on = true

)

[inline]

Parameters:

on

Set 2nd baseline correction to on or off

References f2ndBEnable.

unsigned int Rcuxx::AltroDPCFG::ZSPre

(

)

const [inline]

Zero suppression pre samples.

References fZSPre.

void Rcuxx::AltroDPCFG::SetZSPre

(

unsigned int

val

)

[inline]

Zero suppression pre samples.

References fZSPre.

unsigned int Rcuxx::AltroDPCFG::ZSPost

(

)

const [inline]

Zero suppression post samples.

References fZSPost.

void Rcuxx::AltroDPCFG::SetZSPost

(

unsigned int

val

)

[inline]

Zero suppression post samples.

References fZSPost.

unsigned int Rcuxx::AltroDPCFG::ZSGlitch

(

)

const [inline]

Zero suppression glitch mode.

References fZSGlitch.

void Rcuxx::AltroDPCFG::SetZSGlitch

(

unsigned int

val

)

[inline]

Zero suppression glitch mode Mode can be one of.

bits	hex	Meaning
00	0x0	din-fpd
01	0x1	din-f(t)
10	0x2	din-f(din)
11	0x3	din-f(din-vpd)

See the member function AltroDPCG::SetFirstBMode for the meaning of the abbriviations.

References fZSGlitch.

bool Rcuxx::AltroDPCFG::IsZSEnable

(

)

const [inline]

Is zero suppression enabled.

References fZSEnable.

void Rcuxx::AltroDPCFG::SetZSEnable

(

bool

on = true

)

[inline]

Parameters:

on

Set zero suppression to on or off

References fZSEnable.

virtual void Rcuxx::AltroDPCFG::Print

(

)

const [inline, virtual]

Print contents of this register.

Reimplemented from Rcuxx::AltroRegister.

References f1stBMode, f1stBPol, f2ndBEnable, f2ndBPost, f2ndBPre, fZSEnable, fZSGlitch, fZSPost, fZSPre, and Rcuxx::AltroRegister::Print().

---

Member Data Documentation

unsigned int Rcuxx::AltroDPCFG::f1stBMode [protected]

Mode.

Referenced by FirstBMode(), Get(), Print(), Set(), and SetFirstBMode().

bool Rcuxx::AltroDPCFG::f1stBPol [protected]

1's compliment

Referenced by Get(), IsFirstBPol(), Print(), Set(), and SetFirstBPol().

unsigned int Rcuxx::AltroDPCFG::f2ndBPre [protected]

Pre excl.

Referenced by Get(), Print(), SecondBPre(), Set(), and SetSecondBPre().

unsigned int Rcuxx::AltroDPCFG::f2ndBPost [protected]

Post excl.

Referenced by Get(), Print(), SecondBPost(), Set(), and SetSecondBPost().

bool Rcuxx::AltroDPCFG::f2ndBEnable [protected]

Enable 2nd baseline correction.

Referenced by Get(), IsSecondBEnable(), Print(), Set(), and SetSecondBEnable().

unsigned int Rcuxx::AltroDPCFG::fZSPre [protected]

pre samples

Referenced by Get(), Print(), Set(), SetZSPre(), and ZSPre().

unsigned int Rcuxx::AltroDPCFG::fZSPost [protected]

post samples

Referenced by Get(), Print(), Set(), SetZSPost(), and ZSPost().

unsigned int Rcuxx::AltroDPCFG::fZSGlitch [protected]

Glitch moe.

Referenced by Get(), Print(), Set(), SetZSGlitch(), and ZSGlitch().

bool Rcuxx::AltroDPCFG::fZSEnable [protected]

enable

Referenced by Get(), IsZSEnable(), Print(), Set(), and SetZSEnable().

---

The documentation for this struct was generated from the following file:

• AltroDPCFG.h
