msm2_err_hndl Entity Reference

Inheritance diagram for msm2_err_hndl:

[legend]

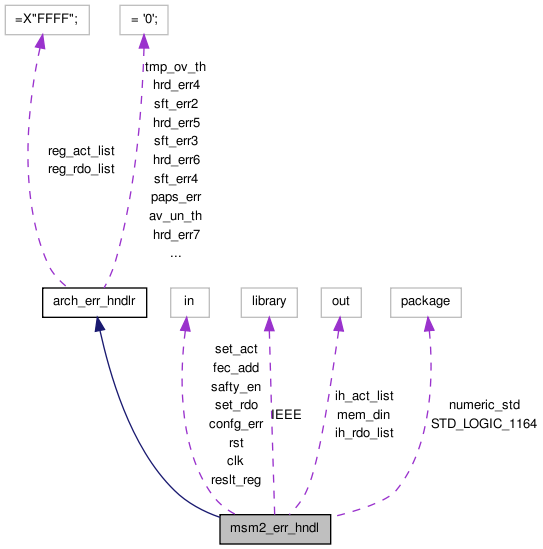

Collaboration diagram for msm2_err_hndl:

[legend]

List of all members.

Architectures
arch_err_hndlr	Architecture
Libraries
IEEE
Packages
STD_LOGIC_1164
numeric_std
Ports
clk	in std_logic
rst	in std_logic
safty_en	in std_logic
set_act	in std_logic
set_rdo	in std_logic
reslt_reg	in std_logic_vector ( 15 downto 0 )
fec_add	in std_logic_vector ( 3 downto 0 )
confg_err	in std_logic_vector ( 7 downto 0 )
mem_din	out std_logic_vector ( 15 downto 0 )
ih_act_list	out std_logic_vector ( 15 downto 0 )
ih_rdo_list	out std_logic_vector ( 15 downto 0 )

---

Member Data Documentation

clk in std_logic [Port]

confg_err in std_logic_vector ( 7 downto 0 ) [Port]

fec_add in std_logic_vector ( 3 downto 0 ) [Port]

IEEE library [Library]

ih_act_list out std_logic_vector ( 15 downto 0 ) [Port]

ih_rdo_list out std_logic_vector ( 15 downto 0 ) [Port]

mem_din out std_logic_vector ( 15 downto 0 ) [Port]

numeric_std package [Package]

reslt_reg in std_logic_vector ( 15 downto 0 ) [Port]

rst in std_logic [Port]

safty_en in std_logic [Port]

set_act in std_logic [Port]

set_rdo in std_logic [Port]

STD_LOGIC_1164 package [Package]

---

The documentation for this class was generated from the following file:

• msmodule2/msm2_inthandler/msm2_err_hndl/msm2_err_hndl.vhd
