flex10ke_asynch_io Entity Reference
Inheritance diagram for flex10ke_asynch_io:

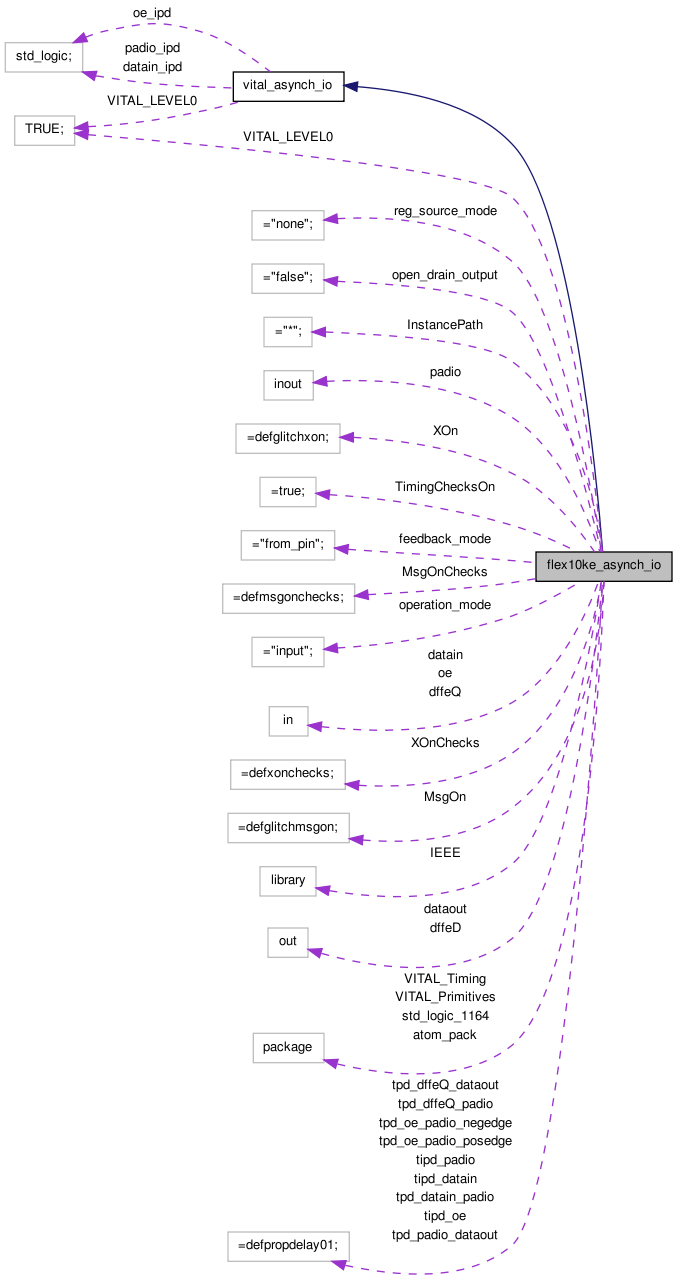

Collaboration diagram for flex10ke_asynch_io:
Architectures | |
| vital_asynch_io | Architecture |
Libraries | |
| IEEE | |
Packages | |
| std_logic_1164 | |
| VITAL_Timing | |
| VITAL_Primitives | |
| atom_pack | Package <atom_pack> |
Generics | |
| operation_mode | string := " input " |
| reg_source_mode | string := " none " |
| feedback_mode | string := " from_pin " |
| open_drain_output | string := " false " |
| TimingChecksOn | boolean := true |
| MsgOn | boolean := DefGlitchMsgOn |
| XOn | boolean := DefGlitchXOn |
| MsgOnChecks | boolean := DefMsgOnChecks |
| XOnChecks | boolean := DefXOnChecks |
| InstancePath | string := " * " |
| tpd_datain_padio | vitaldelaytype01 := DefPropDelay01 |
| tpd_padio_dataout | vitaldelaytype01 := DefPropDelay01 |
| tpd_oe_padio_posedge | vitaldelaytype01 := DefPropDelay01 |
| tpd_oe_padio_negedge | vitaldelaytype01 := DefPropDelay01 |
| tpd_dffeQ_padio | vitaldelaytype01 := DefPropDelay01 |
| tpd_dffeQ_dataout | vitaldelaytype01 := DefPropDelay01 |
| tipd_datain | vitaldelaytype01 := DefPropDelay01 |
| tipd_oe | vitaldelaytype01 := DefPropDelay01 |
| tipd_padio | vitaldelaytype01 := DefPropDelay01 |
Ports | |
| datain | in std_logic |
| dffeQ | in std_logic |
| oe | in std_logic |
| padio | inout std_logic |
| dffeD | out std_logic |
| dataout | out std_logic |
Attributes | |
| VITAL_LEVEL0 | TRUE |
Member Data Documentation
atom_pack package [Package] |
datain in std_logic [Port] |
dataout out std_logic [Port] |
dffeD out std_logic [Port] |
dffeQ in std_logic [Port] |
feedback_mode string := " from_pin " [Generic] |
IEEE library [Library] |
InstancePath string := " * " [Generic] |
MsgOn boolean := DefGlitchMsgOn [Generic] |
MsgOnChecks boolean := DefMsgOnChecks [Generic] |
oe in std_logic [Port] |
open_drain_output string := " false " [Generic] |
operation_mode string := " input " [Generic] |
padio inout std_logic [Port] |
reg_source_mode string := " none " [Generic] |
std_logic_1164 package [Package] |
TimingChecksOn boolean := true [Generic] |
tipd_datain vitaldelaytype01 := DefPropDelay01 [Generic] |
tipd_oe vitaldelaytype01 := DefPropDelay01 [Generic] |
tipd_padio vitaldelaytype01 := DefPropDelay01 [Generic] |
tpd_datain_padio vitaldelaytype01 := DefPropDelay01 [Generic] |
tpd_dffeQ_dataout vitaldelaytype01 := DefPropDelay01 [Generic] |
tpd_dffeQ_padio vitaldelaytype01 := DefPropDelay01 [Generic] |
tpd_oe_padio_negedge vitaldelaytype01 := DefPropDelay01 [Generic] |
tpd_oe_padio_posedge vitaldelaytype01 := DefPropDelay01 [Generic] |
tpd_padio_dataout vitaldelaytype01 := DefPropDelay01 [Generic] |
VITAL_LEVEL0 TRUE [Attribute] |
Reimplemented from vital_asynch_io.
VITAL_Primitives package [Package] |
VITAL_Timing package [Package] |
XOn boolean := DefGlitchXOn [Generic] |
XOnChecks boolean := DefXOnChecks [Generic] |
The documentation for this class was generated from the following file:
- flex10ke/flex10ke_atoms.vhd
