atom_pack Package Reference

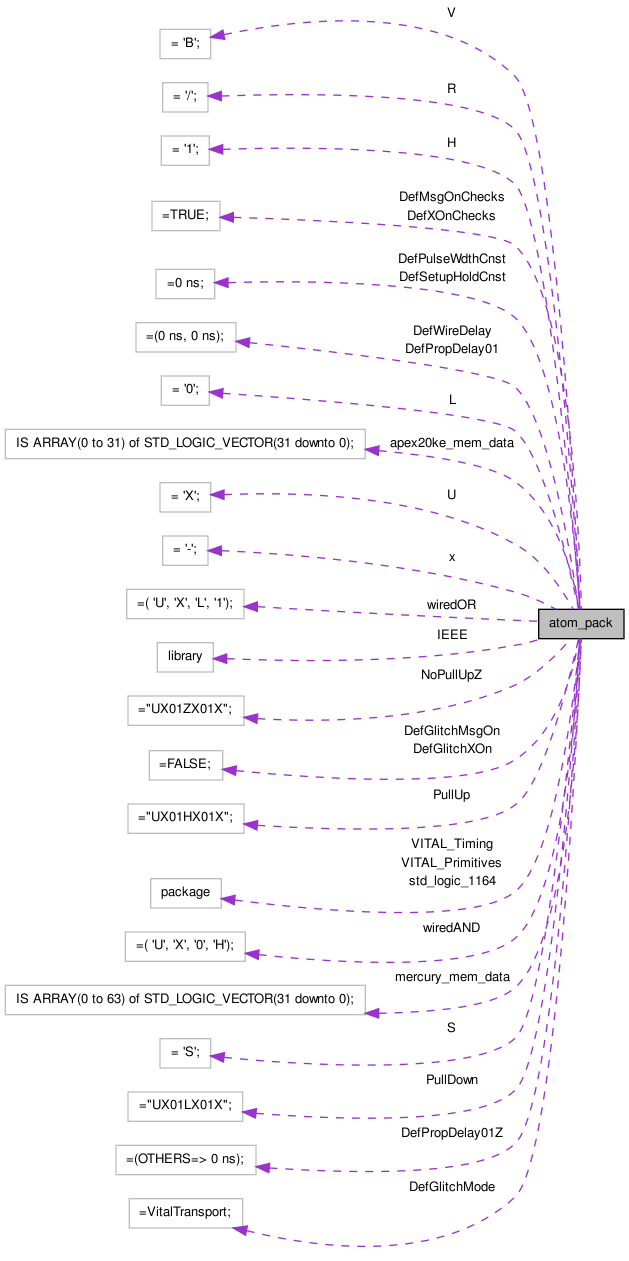

Collaboration diagram for atom_pack:

[legend]

List of all members.

Package Body >> atom_pack

Functions
std_logic_vector	str_to_bin ( lut_mask: in string )
std_logic	product ( list: in std_logic_vector )
integer	alt_conv_integer ( arg: in std_logic_vector )
Libraries
IEEE
Packages
std_logic_1164
VITAL_Timing
VITAL_Primitives
Constants
DefWireDelay	VitalDelayType01 := ( 0 ns , 0 ns )
DefPropDelay01	VitalDelayType01 := ( 0 ns , 0 ns )
DefPropDelay01Z	VitalDelayType01Z := ( OTHERS = > 0 ns )
DefSetupHoldCnst	TIME := 0 ns
DefPulseWdthCnst	TIME := 0 ns
DefGlitchMode	VitalGlitchKindType := VitalTransport
DefGlitchMsgOn	BOOLEAN := FALSE
DefGlitchXOn	BOOLEAN := FALSE
DefMsgOnChecks	BOOLEAN := TRUE
DefXOnChecks	BOOLEAN := TRUE
PullUp	VitalOutputMapType := " UX01HX01X "
NoPullUpZ	VitalOutputMapType := " UX01ZX01X "
PullDown	VitalOutputMapType := " UX01LX01X "
wiredOR	VitalResultMapType := ( ' U ' , ' x ' , ' L ' , ' 1 ' )
wiredAND	VitalResultMapType := ( ' U ' , ' x ' , ' 0 ' , ' H ' )
L	VitalTableSymbolType := ' 0 '
H	VitalTableSymbolType := ' 1 '
x	VitalTableSymbolType := ' - '
S	VitalTableSymbolType := ' S '
R	VitalTableSymbolType := ' / '
U	VitalTableSymbolType := ' x '
V	VitalTableSymbolType := ' B '
Types
apex20ke_mem_data	ARRAY ( 0 to 31 ) of STD_LOGIC_VECTOR ( 31 downto 0 )
mercury_mem_data	ARRAY ( 0 to 63 ) of STD_LOGIC_VECTOR ( 31 downto 0 )

---

Member Function Documentation

[Function]

integer alt_conv_integer

( arg in std_logic_vector )

[Function]

std_logic product

( list in std_logic_vector )

[Function]

std_logic_vector str_to_bin

( lut_mask in string )

---

Member Data Documentation

apex20ke_mem_data ARRAY ( 0 to 31 ) of STD_LOGIC_VECTOR ( 31 downto 0 ) [Type]

DefGlitchMode VitalGlitchKindType := VitalTransport [Constant]

DefGlitchMsgOn BOOLEAN := FALSE [Constant]

DefGlitchXOn BOOLEAN := FALSE [Constant]

DefMsgOnChecks BOOLEAN := TRUE [Constant]

DefPropDelay01 VitalDelayType01 := ( 0 ns , 0 ns ) [Constant]

DefPropDelay01Z VitalDelayType01Z := ( OTHERS = > 0 ns ) [Constant]

DefPulseWdthCnst TIME := 0 ns [Constant]

DefSetupHoldCnst TIME := 0 ns [Constant]

DefWireDelay VitalDelayType01 := ( 0 ns , 0 ns ) [Constant]

DefXOnChecks BOOLEAN := TRUE [Constant]

H VitalTableSymbolType := ' 1 ' [Constant]

IEEE library [Library]

L VitalTableSymbolType := ' 0 ' [Constant]

mercury_mem_data ARRAY ( 0 to 63 ) of STD_LOGIC_VECTOR ( 31 downto 0 ) [Type]

NoPullUpZ VitalOutputMapType := " UX01ZX01X " [Constant]

PullDown VitalOutputMapType := " UX01LX01X " [Constant]

PullUp VitalOutputMapType := " UX01HX01X " [Constant]

R VitalTableSymbolType := ' / ' [Constant]

S VitalTableSymbolType := ' S ' [Constant]

std_logic_1164 package [Package]

U VitalTableSymbolType := ' x ' [Constant]

V VitalTableSymbolType := ' B ' [Constant]

VITAL_Primitives package [Package]

VITAL_Timing package [Package]

wiredAND VitalResultMapType := ( ' U ' , ' x ' , ' 0 ' , ' H ' ) [Constant]

wiredOR VitalResultMapType := ( ' U ' , ' x ' , ' L ' , ' 1 ' ) [Constant]

x VitalTableSymbolType := ' - ' [Constant]

---

The documentation for this class was generated from the following file:

• flex10ke/flex10ke_atoms.vhd
