dffe_io Entity Reference

Inheritance diagram for dffe_io:

[legend]

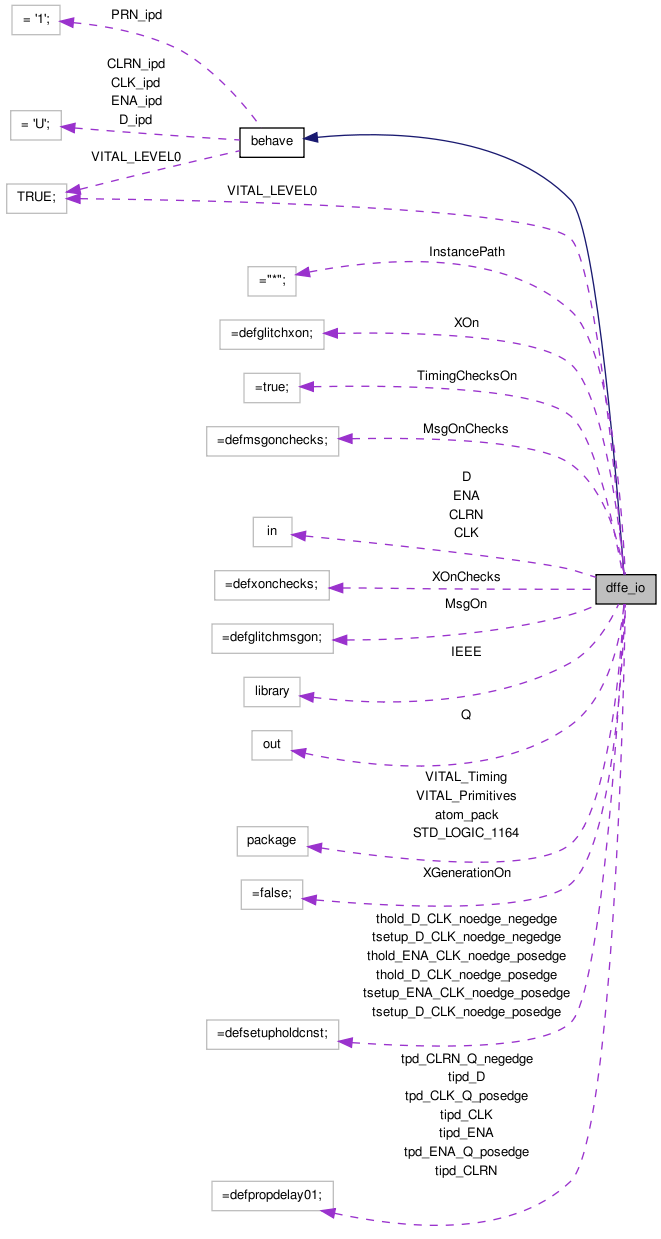

Collaboration diagram for dffe_io:

[legend]

List of all members.

Architectures
behave	Architecture
Libraries
IEEE
Packages
STD_LOGIC_1164
VITAL_Timing
VITAL_Primitives
atom_pack	Package <atom_pack>
Generics
TimingChecksOn	boolean := true
XGenerationOn	boolean := false
XOn	boolean := DefGlitchXOn
MsgOn	boolean := DefGlitchMsgOn
XOnChecks	boolean := DefXOnChecks
MsgOnChecks	boolean := DefMsgOnChecks
InstancePath	string := " * "
tpd_CLRN_Q_negedge	vitaldelaytype01 := DefPropDelay01
tpd_CLK_Q_posedge	vitaldelaytype01 := DefPropDelay01
tpd_ENA_Q_posedge	vitaldelaytype01 := DefPropDelay01
tsetup_D_CLK_noedge_posedge	vitaldelaytype := DefSetupHoldCnst
tsetup_D_CLK_noedge_negedge	vitaldelaytype := DefSetupHoldCnst
tsetup_ENA_CLK_noedge_posedge	vitaldelaytype := DefSetupHoldCnst
thold_D_CLK_noedge_posedge	vitaldelaytype := DefSetupHoldCnst
thold_D_CLK_noedge_negedge	vitaldelaytype := DefSetupHoldCnst
thold_ENA_CLK_noedge_posedge	vitaldelaytype := DefSetupHoldCnst
tipd_D	vitaldelaytype01 := DefPropDelay01
tipd_CLRN	vitaldelaytype01 := DefPropDelay01
tipd_CLK	vitaldelaytype01 := DefPropDelay01
tipd_ENA	vitaldelaytype01 := DefPropDelay01
Ports
Q	out std_logic := ' 0 '
D	in std_logic
CLRN	in std_logic
CLK	in std_logic
ENA	in std_logic
Attributes
VITAL_LEVEL0	TRUE

---

Member Data Documentation

atom_pack package [Package]

CLK in std_logic [Port]

CLRN in std_logic [Port]

D in std_logic [Port]

ENA in std_logic [Port]

IEEE library [Library]

InstancePath string := " * " [Generic]

MsgOn boolean := DefGlitchMsgOn [Generic]

MsgOnChecks boolean := DefMsgOnChecks [Generic]

Q out std_logic := ' 0 ' [Port]

STD_LOGIC_1164 package [Package]

thold_D_CLK_noedge_negedge vitaldelaytype := DefSetupHoldCnst [Generic]

thold_D_CLK_noedge_posedge vitaldelaytype := DefSetupHoldCnst [Generic]

thold_ENA_CLK_noedge_posedge vitaldelaytype := DefSetupHoldCnst [Generic]

TimingChecksOn boolean := true [Generic]

tipd_CLK vitaldelaytype01 := DefPropDelay01 [Generic]

tipd_CLRN vitaldelaytype01 := DefPropDelay01 [Generic]

tipd_D vitaldelaytype01 := DefPropDelay01 [Generic]

tipd_ENA vitaldelaytype01 := DefPropDelay01 [Generic]

tpd_CLK_Q_posedge vitaldelaytype01 := DefPropDelay01 [Generic]

tpd_CLRN_Q_negedge vitaldelaytype01 := DefPropDelay01 [Generic]

tpd_ENA_Q_posedge vitaldelaytype01 := DefPropDelay01 [Generic]

tsetup_D_CLK_noedge_negedge vitaldelaytype := DefSetupHoldCnst [Generic]

tsetup_D_CLK_noedge_posedge vitaldelaytype := DefSetupHoldCnst [Generic]

tsetup_ENA_CLK_noedge_posedge vitaldelaytype := DefSetupHoldCnst [Generic]

VITAL_LEVEL0 TRUE [Attribute]

Reimplemented from behave.

VITAL_Primitives package [Package]

VITAL_Timing package [Package]

XGenerationOn boolean := false [Generic]

XOn boolean := DefGlitchXOn [Generic]

XOnChecks boolean := DefXOnChecks [Generic]

---

The documentation for this class was generated from the following file:

• flex10ke/flex10ke_atoms.vhd
