ad7417 Entity Reference
[Behavoural Model of AD7417 5-channel 10bit ADC]
Top entity of AD7417 model. More...
Inheritance diagram for ad7417:

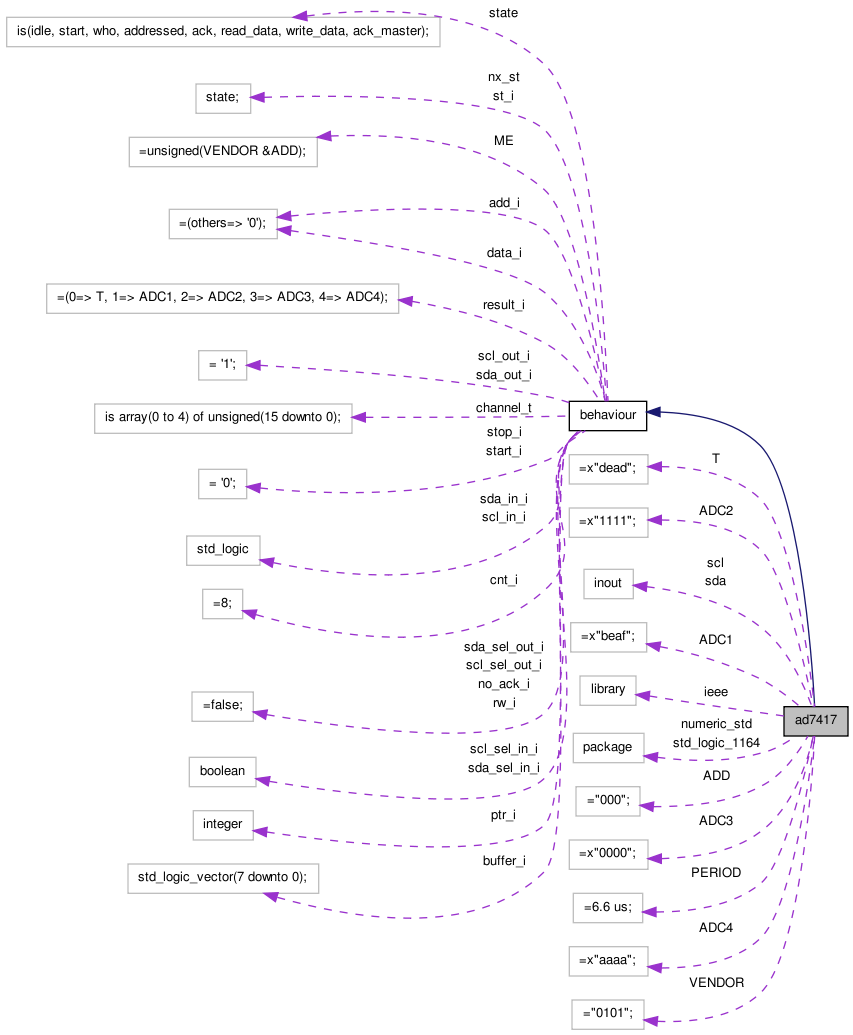

Collaboration diagram for ad7417:
Architectures | |
| behaviour | Architecture |
| Architecture of AD7417 model. More... | |
Libraries | |
| ieee | |
Packages | |
| std_logic_1164 | |
| numeric_std | |
Generics | |
| VENDOR | std_logic_vector ( 3 downto 0 ) := " 0101 " |
| Vendor ID. | |
| ADD | std_logic_vector ( 2 downto 0 ) := " 000 " |
| Address. | |
| PERIOD | time := 6.6 us |
| Period of clk. | |
| T | unsigned ( 15 downto 0 ) := x " dead " |
| T value. | |
| ADC1 | unsigned ( 15 downto 0 ) := x " beaf " |
| ADC1 value. | |
| ADC2 | unsigned ( 15 downto 0 ) := x " 1111 " |
| ADC2 value. | |
| ADC3 | unsigned ( 15 downto 0 ) := x " 0000 " |
| ADC3 value. | |
| ADC4 | unsigned ( 15 downto 0 ) := x " aaaa " |
| ADC4 value. | |
Ports | |
| scl | inout std_logic |
| I2C Clock. | |
| sda | inout std_logic |
| I2C data. | |
Detailed Description
Top entity of AD7417 model.
Member Data Documentation
ADC1 unsigned ( 15 downto 0 ) := x " beaf " [Generic] |
ADC1 value.
ADC2 unsigned ( 15 downto 0 ) := x " 1111 " [Generic] |
ADC2 value.
ADC3 unsigned ( 15 downto 0 ) := x " 0000 " [Generic] |
ADC3 value.
ADC4 unsigned ( 15 downto 0 ) := x " aaaa " [Generic] |
ADC4 value.
ADD std_logic_vector ( 2 downto 0 ) := " 000 " [Generic] |
Address.
ieee library [Library] |
numeric_std package [Package] |
PERIOD time := 6.6 us [Generic] |
Period of clk.
scl inout std_logic [Port] |
I2C Clock.
sda inout std_logic [Port] |
I2C data.
std_logic_1164 package [Package] |
T unsigned ( 15 downto 0 ) := x " dead " [Generic] |
T value.
VENDOR std_logic_vector ( 3 downto 0 ) := " 0101 " [Generic] |
Vendor ID.
The documentation for this class was generated from the following file:
- ad7417/ad7417.vhd
