Poisson Class Reference
[Scripts]

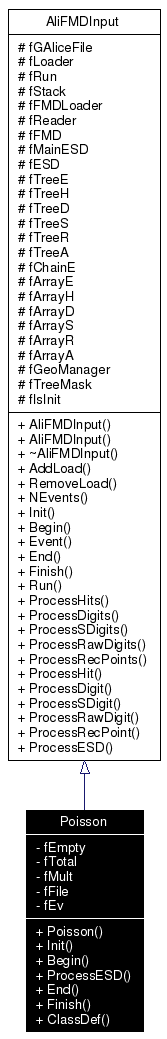

Inheritance diagram for Poisson:

Inheritance graph
[legend]

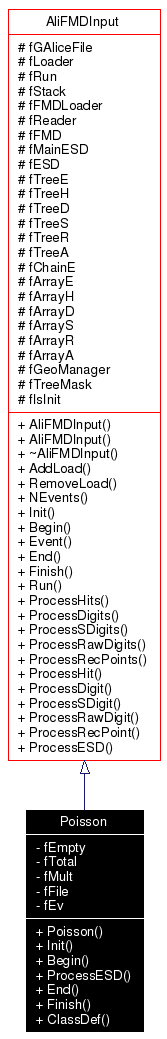

Collaboration diagram for Poisson:

Collaboration graph
[legend]
List of all members.

Detailed Description

Make a poisson reconstruction.

    Root> .L Compile.C
    Root> Compile("Poisson.C")
    Root> Poisson c
    Root> c.Run();

Definition at line 31 of file Poisson.C.

Public Member Functions

 Poisson (Double_t threshold=.3, Int_t nEta=120, Float_t minEta=-6, Float_t maxEta=6, Int_t nPhi=4, Float_t minPhi=0, Float_t maxPhi=2 *TMath::Pi())
Bool_t Init ()
Bool_t Begin (Int_t event)
Bool_t ProcessESD (AliESDFMDHit *esd)
Bool_t End ()
Bool_t Finish ()
 ClassDef (Poisson, 0)

Private Attributes

TH2D * fEmpty
TH2D * fTotal
TH2D * fMult
TFile * fFile
Int_t fEv

Constructor & Destructor Documentation

Poisson::Poisson (  Double_t  threshold = .3,
Int_t  nEta = 120,
Float_t  minEta = -6,
Float_t  maxEta = 6,
Int_t  nPhi = 4,
Float_t  minPhi = 0,
Float_t  maxPhi = 2*TMath::Pi()
)  [inline]


Definition at line 40 of file Poisson.C.

Member Function Documentation

Bool_t Poisson::Begin (  Int_t  event  )  [inline, virtual]


Begining of event

Parameters:
event Event number
Returns:
false on error

Reimplemented from AliFMDInput.

Definition at line 74 of file Poisson.C.

Poisson::ClassDef (  Poisson  ,
0
)


Bool_t Poisson::End (   )  [inline, virtual]


For each bin, reconstruct the charge particle multiplicity as

\[ m = - N_{total} \log\left(\frac{N_{empty}}{N_{total}}\right) \]

where $ N_{total}$ is the total number of strips in the bin, and $ N_{empty}$ is the number of strips in the bin that did not fire.

Returns:
true

Reimplemented from AliFMDInput.

Definition at line 116 of file Poisson.C.

Bool_t Poisson::Finish (   )  [inline, virtual]


Called at the end of the run.

Returns:
false on error

Reimplemented from AliFMDInput.

Definition at line 132 of file Poisson.C.

Bool_t Poisson::Init (   )  [inline, virtual]


Initialize the class. If a user class overloads this member function, then this must be explicitly called

Returns:
false on error

Reimplemented from AliFMDInput.

Definition at line 64 of file Poisson.C.

Bool_t Poisson::ProcessESD (  AliESDFMDHit *  esd  )  [inline]


Definition at line 83 of file Poisson.C.

Member Data Documentation

TH2D* Poisson::fEmpty [private]


Definition at line 34 of file Poisson.C.

Int_t Poisson::fEv [private]


Definition at line 38 of file Poisson.C.

TFile* Poisson::fFile [private]


Definition at line 37 of file Poisson.C.

TH2D* Poisson::fMult [private]


Definition at line 36 of file Poisson.C.

TH2D* Poisson::fTotal [private]


Definition at line 35 of file Poisson.C.

The documentation for this class was generated from the following file:
