AliFMDEdepMap Class Reference

#include <AliFMDEdepMap.h>

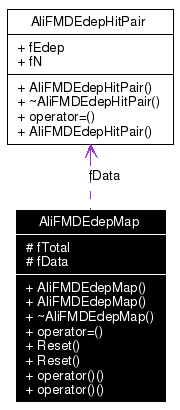

Collaboration diagram for AliFMDEdepMap:

[legend]List of all members.

---

Detailed Description

Map of Energy deposited, hit information per strip. Contains a pair of energy deposited fEdep and number of hits fN, fEdep is the summed energy deposition, and fN is the number of hits

Definition at line 43 of file AliFMDEdepMap.h.

Public Member Functions
	AliFMDEdepMap (const AliFMDEdepMap &other)
	AliFMDEdepMap (size_t maxDet=kMaxDetectors, size_t maxRing=kMaxRings, size_t maxSec=kMaxSectors, size_t maxStr=kMaxStrips)
virtual	~AliFMDEdepMap ()
AliFMDEdepMap &	operator= (const AliFMDEdepMap &other)
virtual void	Reset ()
virtual void	Reset (const AliFMDEdepHitPair &val)
virtual AliFMDEdepHitPair &	operator() (UShort_t detector, Char_t ring, UShort_t sector, UShort_t strip)
virtual const AliFMDEdepHitPair &	operator() (UShort_t detector, Char_t ring, UShort_t sector, UShort_t strip) const
Protected Attributes
size_t	fTotal
AliFMDEdepHitPair *	fData

---

Constructor & Destructor Documentation

AliFMDEdepMap::AliFMDEdepMap (  const AliFMDEdepMap &  other  )

Copy constructor Parameters: other  Object to copy from. Returns:

AliFMDEdepMap::AliFMDEdepMap (  size_t  maxDet = kMaxDetectors, size_t  maxRing = kMaxRings, size_t  maxSec = kMaxSectors, size_t  maxStr = kMaxStrips )

Constructor Parameters: maxDet  Number of detectors (3) maxRing  Number of rings (2) maxSec  Number of sectors (40) maxStr  Number of strips (20)

virtual AliFMDEdepMap::~AliFMDEdepMap (   )  [inline, virtual]

DTOR Definition at line 60 of file AliFMDEdepMap.h.

---

Member Function Documentation

virtual const AliFMDEdepHitPair& AliFMDEdepMap::operator() (  UShort_t  detector, Char_t  ring, UShort_t  sector, UShort_t  strip )  const [virtual]

Access operator Parameters: detector  Detector ring  Ring sector  Sector strip  Strip Returns: value stored for the strip

virtual AliFMDEdepHitPair& AliFMDEdepMap::operator() (  UShort_t  detector, Char_t  ring, UShort_t  sector, UShort_t  strip )  [virtual]

Access operator Parameters: detector  Detector ring  Ring sector  Sector strip  Strip Returns: reference value stored for the strip

AliFMDEdepMap& AliFMDEdepMap::operator= (  const AliFMDEdepMap &  other  )

virtual void AliFMDEdepMap::Reset (  const AliFMDEdepHitPair &  val  )  [virtual]

Reset to value Parameters: val  Value to reset from

virtual void AliFMDEdepMap::Reset (   )  [virtual]

Reset to default

---

Member Data Documentation

AliFMDEdepHitPair* AliFMDEdepMap::fData [protected]

Definition at line 89 of file AliFMDEdepMap.h.

size_t AliFMDEdepMap::fTotal [protected]

Definition at line 88 of file AliFMDEdepMap.h.

---

The documentation for this class was generated from the following file:

• AliFMDEdepMap.h

---
