AliFMDAltroWriter Class Reference

#include <FMD/AliFMDAltroIO.h>

Inheritance diagram for AliFMDAltroWriter:

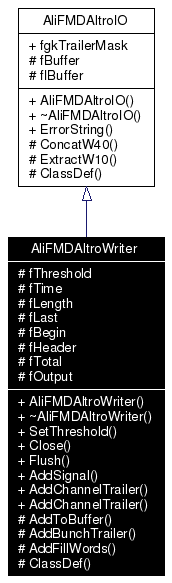

[legend]Collaboration diagram for AliFMDAltroWriter:

[legend]List of all members.

---

Detailed Description

Class to write ALTRO formated raw data from an array of AliFMDDigit objects.

    AliFMDRawWriter* fmdWriter = new AliFMDRawWriter(0);
    TClonesArray*    array     = fmd->DigitArray();
    fmdWriter->WriteDigits(array);

Definition at line 178 of file AliFMDAltroIO.h.

Public Member Functions
	AliFMDAltroWriter (std::ostream &stream)
virtual	~AliFMDAltroWriter ()
void	SetThreshold (UShort_t threshold)
Int_t	Close ()
Int_t	Flush ()
Int_t	AddSignal (UShort_t adc)
Int_t	AddChannelTrailer (UShort_t board, UShort_t chip, UShort_t channel)
Int_t	AddChannelTrailer (UInt_t hwaddr)
Protected Member Functions
Int_t	AddToBuffer (UShort_t x)
Int_t	AddBunchTrailer ()
Int_t	AddFillWords ()
	ClassDef (AliFMDAltroWriter, 0)
Protected Attributes
UShort_t	fThreshold
UShort_t	fTime
UShort_t	fLength
UShort_t	fLast
size_t	fBegin
size_t	fHeader
Long_t	fTotal
std::ostream &	fOutput

---

Constructor & Destructor Documentation

AliFMDAltroWriter::AliFMDAltroWriter (  std::ostream &  stream  )

Constructor. Parameters: stream  File to read from Exceptions: Int_t  A negative error code in case of failure

virtual AliFMDAltroWriter::~AliFMDAltroWriter (   )  [inline, virtual]

Definition at line 185 of file AliFMDAltroIO.h.

---

Member Function Documentation

Int_t AliFMDAltroWriter::AddBunchTrailer (   )  [protected]

Add a bunch trailer to output. Returns: number of 10 bit words written to disk, or negative error code on failure

Int_t AliFMDAltroWriter::AddChannelTrailer (  UInt_t  hwaddr  )

Write a channel trailer to output. Parameters: hwaddr  Hardware address (channel address) Returns: Number of 10 bit words written, or negative error code on failure

Int_t AliFMDAltroWriter::AddChannelTrailer (  UShort_t  board, UShort_t  chip, UShort_t  channel )

Write a channel trailer to output. Parameters: board  The FEC board number (0-31) chip  The ALTRO chip number (0-7) channel  The ALTRO channel number (0-16) Returns: Number of 10 bit words written, or negative error code on failure

Int_t AliFMDAltroWriter::AddFillWords (   )  [protected]

Add fill words as needed to output Returns: number of 10 bit words written to disk, or negative error code on failure

Int_t AliFMDAltroWriter::AddSignal (  UShort_t  adc  )

Add a signal to output. If the signal adc is less then the current threshold, a new bunch trailer is written. Parameters: adc  Signal Returns: 0 on success, or negative error code on failure

Int_t AliFMDAltroWriter::AddToBuffer (  UShort_t  x  )  [protected]

Add a value to output buffer. Parameters: x  Value to add. Returns: number of 10 bit words written to disk, or negative error code on failure

AliFMDAltroWriter::ClassDef (  AliFMDAltroWriter  , 0  )  [protected]

Int_t AliFMDAltroWriter::Close (   )

Close the output, by writing the appropriate header. The actual stream should be called by the user. Returns: number of bytes written, or negative error code on failure

Int_t AliFMDAltroWriter::Flush (   )

Flush buffered output to file (if there is any). Returns: 0, or negative error code on failure

void AliFMDAltroWriter::SetThreshold (  UShort_t  threshold  )  [inline]

Parameters: threshold  Zero-suppresion threshold Definition at line 187 of file AliFMDAltroIO.h.

---

Member Data Documentation

size_t AliFMDAltroWriter::fBegin [protected]

High-water mark (begining of file) Definition at line 235 of file AliFMDAltroIO.h.

size_t AliFMDAltroWriter::fHeader [protected]

High-water mark (begining of file) Definition at line 237 of file AliFMDAltroIO.h.

UShort_t AliFMDAltroWriter::fLast [protected]

Last meaning-full data Definition at line 233 of file AliFMDAltroIO.h.

UShort_t AliFMDAltroWriter::fLength [protected]

Current bunch length Definition at line 231 of file AliFMDAltroIO.h.

std::ostream& AliFMDAltroWriter::fOutput [protected]

output stream Definition at line 241 of file AliFMDAltroIO.h.

UShort_t AliFMDAltroWriter::fThreshold [protected]

Zero suppression threshold Definition at line 227 of file AliFMDAltroIO.h.

UShort_t AliFMDAltroWriter::fTime [protected]

Current time Definition at line 229 of file AliFMDAltroIO.h.

Long_t AliFMDAltroWriter::fTotal [protected]

Total number of bytes written Definition at line 239 of file AliFMDAltroIO.h.

---

The documentation for this class was generated from the following file:

• AliFMDAltroIO.h

---
