drivers Entity Reference
Inheritance diagram for drivers:

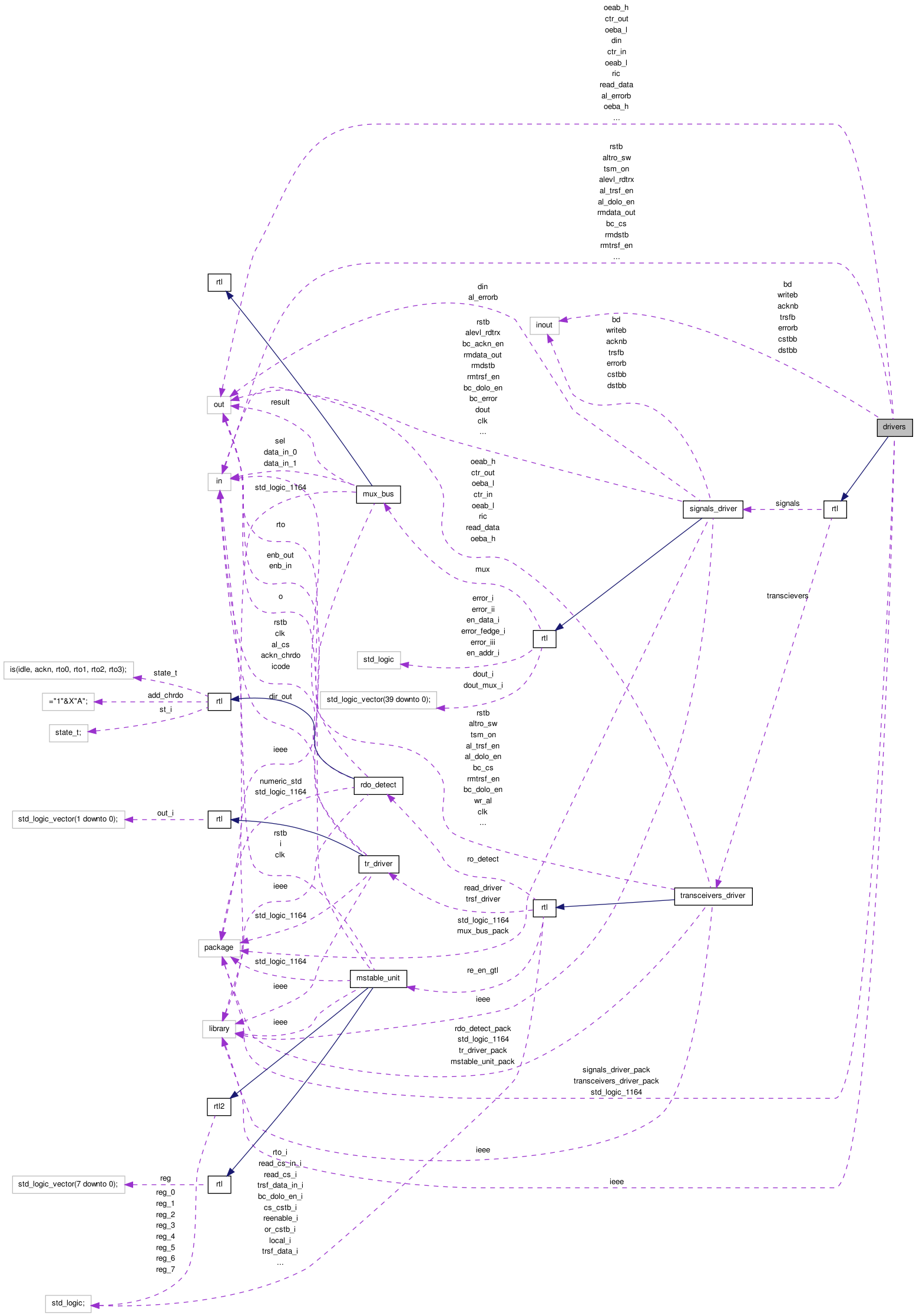

Collaboration diagram for drivers:
Architectures | |
| rtl | Architecture |
Libraries | |
| ieee | |
Packages | |
| std_logic_1164 | |
| signals_driver_pack | Package <signals_driver_pack> |
| transceivers_driver_pack | Package <transceivers_driver_pack> |
Ports | |
| clk | in std_logic |
| rstb | in std_logic |
| tsm_on | in std_logic |
| al_cs | in std_logic |
| bc_cs | in std_logic |
| cstb | in std_logic |
| wr_al | in std_logic |
| al_dolo_en | in std_logic |
| bc_dolo_en | in std_logic |
| al_trsf_en | in std_logic |
| bc_master | in std_logic |
| card_isolation | in std_logic |
| bc_ackn | in std_logic |
| bc_ack_en | in std_logic |
| bc_error | in std_logic |
| dout | in std_logic_vector ( 15 downto 0 ) |
| alevl_rdtrx | in std_logic |
| evl_cstb | in std_logic |
| evl_addr | in std_logic_vector ( 39 downto 20 ) |
| rmtrsf_en | in std_logic |
| ackn_chrdo | in std_logic |
| rmtrsf | in std_logic |
| rmdstb | in std_logic |
| rmdata_out | in std_logic_vector ( 39 downto 0 ) |
| altro_sw | in std_logic |
| sda_out | in std_logic |
| oeba_l | out std_logic |
| oeab_l | out std_logic |
| oeba_h | out std_logic |
| oeab_h | out std_logic |
| read_data | out std_logic |
| ric | out std_logic |
| ctr_in | out std_logic |
| ctr_out | out std_logic |
| al_errorb | out std_logic |
| din | out std_logic_vector ( 39 downto 0 ) |
| bd | inout std_logic_vector ( 39 downto 0 ) |
| acknb | inout std_logic |
| errorb | inout std_logic |
| trsfb | inout std_logic |
| dstbb | inout std_logic |
| writeb | inout std_logic |
| cstbb | inout std_logic |
Member Data Documentation
ackn_chrdo in std_logic [Port] |
acknb inout std_logic [Port] |
al_cs in std_logic [Port] |
al_dolo_en in std_logic [Port] |
al_errorb out std_logic [Port] |
al_trsf_en in std_logic [Port] |
alevl_rdtrx in std_logic [Port] |
altro_sw in std_logic [Port] |
bc_ack_en in std_logic [Port] |
bc_ackn in std_logic [Port] |
bc_cs in std_logic [Port] |
bc_dolo_en in std_logic [Port] |
bc_error in std_logic [Port] |
bc_master in std_logic [Port] |
bd inout std_logic_vector ( 39 downto 0 ) [Port] |
card_isolation in std_logic [Port] |
clk in std_logic [Port] |
cstb in std_logic [Port] |
cstbb inout std_logic [Port] |
ctr_in out std_logic [Port] |
ctr_out out std_logic [Port] |
din out std_logic_vector ( 39 downto 0 ) [Port] |
dout in std_logic_vector ( 15 downto 0 ) [Port] |
dstbb inout std_logic [Port] |
errorb inout std_logic [Port] |
evl_addr in std_logic_vector ( 39 downto 20 ) [Port] |
evl_cstb in std_logic [Port] |
ieee library [Library] |
oeab_h out std_logic [Port] |
oeab_l out std_logic [Port] |
oeba_h out std_logic [Port] |
oeba_l out std_logic [Port] |
read_data out std_logic [Port] |
ric out std_logic [Port] |
rmdata_out in std_logic_vector ( 39 downto 0 ) [Port] |
rmdstb in std_logic [Port] |
rmtrsf in std_logic [Port] |
rmtrsf_en in std_logic [Port] |
rstb in std_logic [Port] |
sda_out in std_logic [Port] |
signals_driver_pack package [Package] |
std_logic_1164 package [Package] |
transceivers_driver_pack package [Package] |
trsfb inout std_logic [Port] |
tsm_on in std_logic [Port] |
wr_al in std_logic [Port] |
writeb inout std_logic [Port] |
The documentation for this class was generated from the following file:
- bc/drivers/drivers.vhd
