alprotocol_if Entity Reference
Inheritance diagram for alprotocol_if:

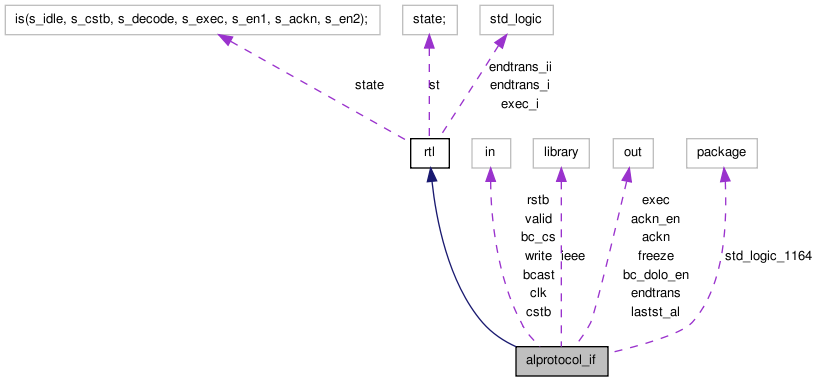

Collaboration diagram for alprotocol_if:
Architectures | |
| rtl | Architecture |
Libraries | |
| ieee | |
Packages | |
| std_logic_1164 | |
Ports | |
| clk | in std_logic |
| rstb | in std_logic |
| cstb | in std_logic |
| valid | in std_logic |
| bc_cs | in std_logic |
| bcast | in std_logic |
| write | in std_logic |
| freeze | out std_logic |
| exec | out std_logic |
| ackn_en | out std_logic |
| ackn | out std_logic |
| lastst_al | out std_logic |
| endtrans | out std_logic |
| bc_dolo_en | out std_logic |
Member Data Documentation
ackn out std_logic [Port] |
ackn_en out std_logic [Port] |
bc_cs in std_logic [Port] |
bc_dolo_en out std_logic [Port] |
bcast in std_logic [Port] |
clk in std_logic [Port] |
cstb in std_logic [Port] |
endtrans out std_logic [Port] |
exec out std_logic [Port] |
freeze out std_logic [Port] |
ieee library [Library] |
lastst_al out std_logic [Port] |
rstb in std_logic [Port] |
std_logic_1164 package [Package] |
valid in std_logic [Port] |
write in std_logic [Port] |
The documentation for this class was generated from the following file:
- bc/bc_core/altrobusinterface/alprotocol_if/alprotocol_if.vhd
