FeeServer::Main Class Reference
[Core classes.]

#include <feeserver/fee_main.hh>

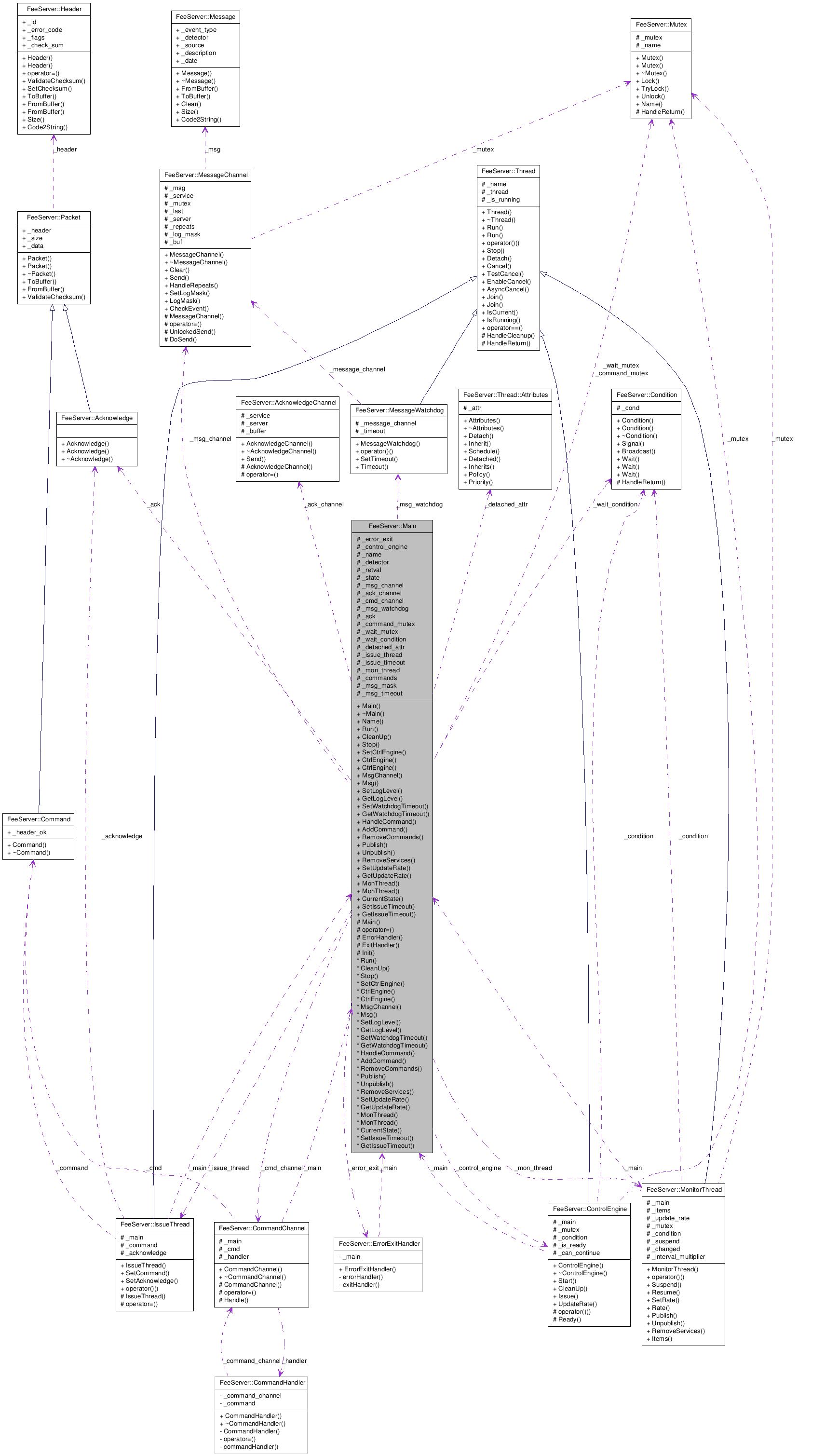

Collaboration diagram for FeeServer::Main:

Detailed Description

The Feeserver Main manager of of the fee server.

Examples:: test_server.cc.


Public Types
enum	{ Restart = 2, Update = 3, InitRestart = 4, DimExit = 204 }
enum	State { Collecting, Running, Error }
Public Member Functions
	Main (const std::string &name, const std::string &detector, const std::string &dns)
virtual	~Main ()
const std::string &	Name () const
Steering routines
int	Run (const unsigned int ce_timeout=2000)
void	CleanUp ()
void	Stop (int ret)
Init/CE thread handling
void	SetCtrlEngine (ControlEngine &e)
ControlEngine &	CtrlEngine ()
const ControlEngine &	CtrlEngine () const
Message handling
MessageChannel &	MsgChannel ()
void	Msg (Message::Event event, const std::string &where, const char *format,...)
void	SetLogLevel (unsigned int mask)
unsigned int	GetLogLevel () const
void	SetWatchdogTimeout (unsigned int timeout)
unsigned int	GetWatchdogTimeout () const
Server commands
void	HandleCommand (Command &c)
bool	AddCommand (ServerCommand *c)
void	RemoveCommands ()
Services
int	Publish (ServiceBase &service)
int	Unpublish (const std::string &name)
void	RemoveServices ()
void	SetUpdateRate (unsigned short rate)
unsigned short	GetUpdateRate () const
MonitorThread &	MonThread ()
const MonitorThread &	MonThread () const
Misc
const State &	CurrentState () const
void	SetIssueTimeout (unsigned long timeout)
unsigned long	GetIssueTimeout () const
Protected Types
typedef std::vector < ServerCommand * >	CommandList
Protected Member Functions
	Main (const Main &)
Main &	operator= (const Main &)
virtual void	ErrorHandler (int severity, int code, char *msg)
virtual void	ExitHandler (int code)
void	Init (const unsigned int ce_timeout=1000)
Protected Attributes
ErrorExitHandler *	_error_exit
ControlEngine *	_control_engine
std::string	_name
std::string	_detector
int	_retval
State	_state
MessageChannel *	_msg_channel
AcknowledgeChannel *	_ack_channel
CommandChannel *	_cmd_channel
MessageWatchdog *	_msg_watchdog
Acknowledge	_ack
Mutex	_command_mutex
Mutex	_wait_mutex
Condition	_wait_condition
Thread::Attributes	_detached_attr
IssueThread	_issue_thread
unsigned long	_issue_timeout
MonitorThread	_mon_thread
CommandList	_commands
unsigned long	_msg_mask
unsigned long	_msg_timeout
Friends
class	ErrorExitHandler
class	IssueThread

Member Typedef Documentation

typedef std::vector<ServerCommand*> FeeServer::Main::CommandList [protected]

A list of server commands

Member Enumeration Documentation

anonymous enum

Enumerator:

Restart	return value that restart the server
Update	Return value that updates and restarts the server
InitRestart	Return value that says we should restart since init failed
DimExit	Dim error

enum FeeServer::Main::State

States of the fee server

Enumerator:

Collecting	Collecting information
Running	Running
Error	In error

Constructor & Destructor Documentation

FeeServer::Main::Main	(	const std::string &	name,
		const std::string &	detector,
		const std::string &	dns
	)

Constructor

Parameters:

	name	Name of server
	detector	name of detector (max 3 letters)
	dns	DIM domain name server host

FeeServer::Main::~Main ( ) [virtual]

Destructor

FeeServer::Main::Main ( const Main & ) [protected]

Not implemented

Member Function Documentation

const std::string& FeeServer::Main::Name ( ) const [inline]

Get the name

int FeeServer::Main::Run ( const unsigned int ce_timeout = 2000 )

Run the fee server

Parameters:

ce_timeout

Time out for CE to start (milliseconds)

Returns:: 0 on succces, error code otherwise

void FeeServer::Main::CleanUp ( )

Clean up all

void FeeServer::Main::Stop ( int ret )

Stop the server

Parameters:

ret

is the return value

void FeeServer::Main::SetCtrlEngine ( ControlEngine & e ) [inline]

Set the control engine

ControlEngine& FeeServer::Main::CtrlEngine ( ) [inline]

Get reference to the control engine

const ControlEngine& FeeServer::Main::CtrlEngine ( ) const [inline]

Get reference to the control engine

MessageChannel& FeeServer::Main::MsgChannel ( ) [inline]

Get a reference to the message channel

Returns:: reference to the message channel

void FeeServer::Main::Msg	(	Message::Event	event,
		const std::string &	where,
		const char *	format,
			...
	)

Make a message. If the message channel isn't up and running yet, we simply print to standard out.

Parameters:

	event	Event type
	where	Where the message came from
	format	`printf` like format

void FeeServer::Main::SetLogLevel ( unsigned int mask )

Set the log-level

unsigned int FeeServer::Main::GetLogLevel ( ) const

Get the log mask

void FeeServer::Main::SetWatchdogTimeout ( unsigned int timeout )

Set the watchdog time out

unsigned int FeeServer::Main::GetWatchdogTimeout ( ) const

Set the watchdog time out

void FeeServer::Main::HandleCommand ( Command & c )

Handle commands arriving over the command channel

bool FeeServer::Main::AddCommand ( ServerCommand * c )

Add a command to the known server commands

void FeeServer::Main::RemoveCommands ( )

Remove commands

int FeeServer::Main::Publish ( ServiceBase & service )

publish a service

Examples:: test_server.cc.

int FeeServer::Main::Unpublish ( const std::string & name )

Un-publish a service. It is not removed from the list, but will not be updated

void FeeServer::Main::RemoveServices ( )

Remove all services

void FeeServer::Main::SetUpdateRate ( unsigned short rate ) [inline]

Set the update rate time out in milliseconds

unsigned short FeeServer::Main::GetUpdateRate ( ) const [inline]

Get the update rate in milliseconds

MonitorThread& FeeServer::Main::MonThread ( ) [inline]

const MonitorThread& FeeServer::Main::MonThread ( ) const [inline]

const State& FeeServer::Main::CurrentState ( ) const [inline]

Get the state of the fee server

void FeeServer::Main::SetIssueTimeout ( unsigned long timeout ) [inline]

Set the issue time out in milliseconds

unsigned long FeeServer::Main::GetIssueTimeout ( ) const [inline]

Get the issue timeout in milliseconds

Main& FeeServer::Main::operator= ( const Main & ) [protected]

Not implemented

void FeeServer::Main::ErrorHandler	(	int	severity,
		int	code,
		char *	msg
	)			`[protected, virtual]`

Handle DIM errors

void FeeServer::Main::ExitHandler ( int code ) [protected, virtual]

Handle DIM exit requests

void FeeServer::Main::Init ( const unsigned int ce_timeout = 1000 ) [protected]

Initialize

Parameters:

ce_timeout

Time out for CE startup

Friends And Related Function Documentation

friend class ErrorExitHandler [friend]

Handler of DIM errors and exit requests is a friend

friend class IssueThread [friend]

Issue thread is a friend

Member Data Documentation

ErrorExitHandler* FeeServer::Main::_error_exit [protected]

Handle DIM errors and exit requests

ControlEngine* FeeServer::Main::_control_engine [protected]

The control engine

std::string FeeServer::Main::_name [protected]

Name of the server

std::string FeeServer::Main::_detector [protected]

Name of the detector

int FeeServer::Main::_retval [protected]

The return value of the server

State FeeServer::Main::_state [protected]

State of the fee server

MessageChannel* FeeServer::Main::_msg_channel [protected]

The message channel

AcknowledgeChannel* FeeServer::Main::_ack_channel [protected]

The acknowledge channel

CommandChannel* FeeServer::Main::_cmd_channel [protected]

The command channel

MessageWatchdog* FeeServer::Main::_msg_watchdog [protected]

Message channel watch dog

Acknowledge FeeServer::Main::_ack [protected]

Acknowledge structure

Mutex FeeServer::Main::_command_mutex [protected]

Mutex to lock command handling

Mutex FeeServer::Main::_wait_mutex [protected]

Mutex to lock issue handling

Condition FeeServer::Main::_wait_condition [protected]

Condition to wait for issue to finish

Thread::Attributes FeeServer::Main::_detached_attr [protected]

Attributes for issue thread

IssueThread FeeServer::Main::_issue_thread [protected]

Issue thread

unsigned long FeeServer::Main::_issue_timeout [protected]

Timeout for call of issue - the longest time a command can be executed by the CE, before the watch dog kills this thread. This value is given in milliseconds.

MonitorThread FeeServer::Main::_mon_thread [protected]

Monitor thread

CommandList FeeServer::Main::_commands [protected]

The list of known server commands

unsigned long FeeServer::Main::_msg_mask [mutable, protected]

unsigned long FeeServer::Main::_msg_timeout [mutable, protected]

The documentation for this class was generated from the following files:

/home/hehi/cholm/alice/fee/feeserverxx/feeserver/fee_main.hh
/home/hehi/cholm/alice/fee/feeserverxx/feeserver/fee_main.cc
